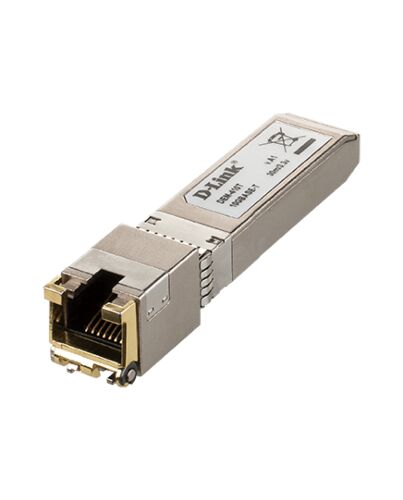

D-Link SFP+ 10GBASE-T Copper Transceiver
£183.98
D-Link SFP+ 10GBASE-T Copper Transceiver, Copper, 10000 Mbit/s, SFP+, T, 30 m, 10 Gigabit Ethernet
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The 10GBASE-T SFP+ transceiver ule delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
Specifications
Performance
SFP transceiver type*
Copper
Maximum data transfer rate*
10000 Mbit/s
Interface type*
SFP+
SFP transceiver standard
T
Maximum transfer distance
30 m
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Networking standards
IEEE 802.3ab, IEEE 802.3an
Ethernet LAN (RJ-45) ports
1
Fiber ethernet cabling technology
10GBASE, 1000BASE
Features
Product colour
Gold, Silver
Mean time between failures (MTBF)
217186 h
Power
Input voltage
3.3 V
Certificates
Compliance certificates
RoHS
Safety
LVD
Certification
CE, FCC, VCCI
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.7 mm
Depth
68 mm
Weight & dimensions
Height
8.5 mm
Weight
20 g
Packaging data
Package width
74 mm
Package depth
131 mm
Package height
49 mm
Package weight
64 g
Logistics data
Shipping (inner) case length
36 cm
Shipping (inner) case width
26 cm
Shipping (inner) case height
31 cm
Shipping (inner) case net weight
3.2 kg
Products per shipping (inner) case
50 pc(s)
Pallet gross weight (air)
272 kg
Master (outer) cases per pallet (air)
60 pc(s)
Products per pallet (air)
3000 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
272 kg
Master (outer) cases per pallet (sea)
60 pc(s)
Products per pallet (sea)
3000 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Harmonized System (HS) code
85369010
Additional Information
| EAN/UPC | 790069442353 |
|---|---|
| MPN | DEM-410T |
| BRAND | D-Link |
