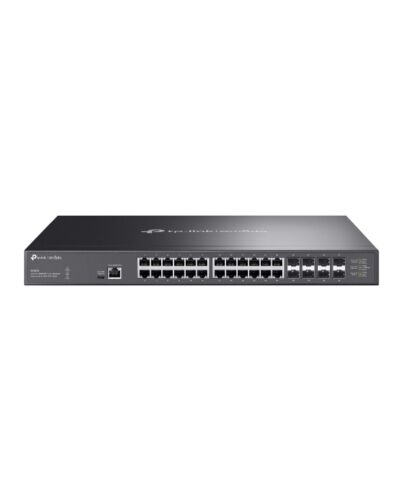

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
£1,224.60
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Key Features
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
24
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
SFP+ ule slots quantity
8
USB Type-C ports quantity
1
Console port
RJ-45/USB Type-C
Network
Networking standards*
IEEE 802.3az
10G support*
Yes
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100 Mbit/s
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Data transmission
Switching capacity*
640 Gbit/s
Forwarding rate
240 Mpps
MAC address table*
32000 entries
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
24 MB
Security
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)
Yes
Security
IGMP snooping
Yes
SSH/SSL support
Yes
Loop protection
Yes
ation
Auto VLAN, MAC-based ation, Port-based ation
ation type
AAA, RADIUS, TACACS+
Multicast features
Multicast support
Yes
Design
Rack mounting*
Yes
Stackable*
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
106.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
363.23 BTU/h
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging content
Cables included
AC, LAN (RJ-45)
Quick start guide
Yes
Rack mount kit
Yes
Additional Information
| EAN/UPC | 8885020622669 |
|---|---|
| MPN | SX3832 |
| BRAND | TP-LINK |
