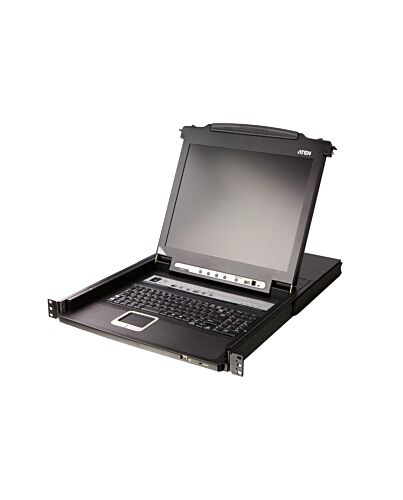

ATEN CL5708MW rack console 43.9 cm (17.3") Black 1U
£1,595.50
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers f a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled f a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.
The CL5708 is built on a ular design. The KVM section can be detached f the switch section for convenient maintenance and repair.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.
The CL5708 is built on a ular design. The KVM section can be detached f the switch section for convenient maintenance and repair.
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
- Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing
- Available with or without fingerprint identification reader1
- Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
- Daisy-chain up to 31 additional units – controls up to 256 computers f a single console
- Dual interface – supports computers and console with PS/2 or USB keyboards and mice
- USB port allows each computer to access USB peripherals2 (inapplicable to CL5708MW)
- LCD ule rotates up to 120 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
- Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708FM / CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)
- No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security – only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan e enables continuous monitoring of user-selected computers
- Broadcast supports – commands f the keyboard can be broadcast to all available computers on the installation
- Hot pluggable
- Beeper on / off via hotkey and OSD
- upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Optional rack mount kits available including easy installation options
- Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Specifications
Display
Display diagonal*
43.9 cm (17.3")
Display
LCD
On Screen Display (OSD)
Yes
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 85%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Daisy chain
Yes
Number of computers controlled
256
LED indicators
Yes
Push button
Yes
Rack capacity*
1U
Country of origin
China
Ports & interfaces
VGA (D-Sub) ports quantity
8
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Power consumption (typical)
15.4 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
689.2 mm
Height
44 mm
Depth
480 mm
Weight
13.4 kg
Packaging data
Package weight
17.1 kg
Package width
668 mm
Package depth
833 mm
Package height
135 mm
Packaging content
Cables included
AC, KVM
Quick installation guide
Yes
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case width
668 mm
Master (outer) case length
833 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
17.1 kg
Additional Information
| EAN/UPC | 4710469348525 |
|---|---|
| MPN | CL5708MW |
| BRAND | ATEN |
