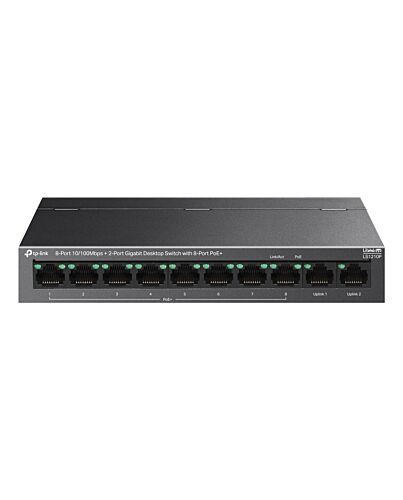

TP-Link LS1210P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
£44.57
TP-Link LS1210P, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Desktop
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The LS1210P is an 8-Port 10/100Mbps + 2-Port Gigabit Desktop Switch with 8 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 96 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend e**, and featured with lation e & PoE Auto Recovery, LS1210P is ideal for surveillance scenario.
Key Features
- 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2x Gigabit non-PoE Ports
- 96 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend e**
- lation e allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Desktop / Wall-mounting
Specifications
Management features
Switch type*
Unmanaged
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab
10G support*
No
Data transmission
Switching capacity*
5.6 Gbit/s
Forwarding rate
4.1664 Mpps
MAC address table*
2000 entries
Jumbo frames support
Yes
Packet buffer memory
2 MB
Design
Rack mounting*
No
Stackable*
No
Form factor
Desktop
Product colour
Black
LED indicators
Link, PoE, Power
Power
Power source*
DC
Power supply included*
Yes
AC input voltage
220 - 240 V
AC input frequency
50/60 Hz
DC input voltage
53.5 V
Input current
1.92 A
Power consumption (max)
99.52 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Total Power over Ethernet (PoE) budget
96 W
Operational conditions
Heat dissipation
338.368 BTU/h
Weight & dimensions
Width
171 mm
Depth
98 mm
Height
27 mm
Packaging content
User guide
Yes
Certificates
Certification
CE, RoHS
Additional Information
| EAN/UPC | 1210002601177 |
|---|---|
| MPN | LS1210P |
| BRAND | TPLINK |
