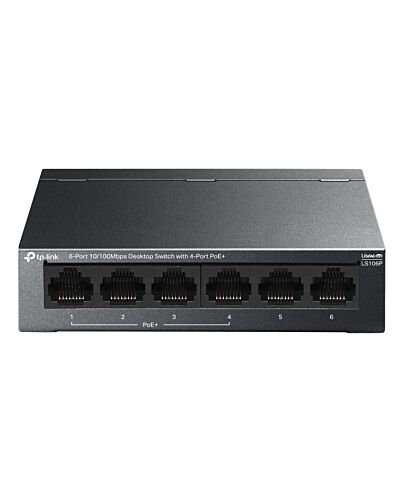

TP-Link LS106P network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Desktop
£26.68
TP-Link LS106P, Unmanaged, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Desktop
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend e**. Featured with lation e & PoE Auto Recovery, LS106P is ideal for surveillance scenario.
Key Features
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2× 10/100 Mbps Non-PoE Ports
- 65 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend e**
- lation e allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Desktop / Wall-mounting
Specifications
Management features
Switch type*
Unmanaged
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
6
Basic switching RJ-45 Ethernet ports type*
Fast Ethernet (10/100)
Network
Networking standards*
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
10G support*
No
Data transmission
Switching capacity*
1.2 Gbit/s
Forwarding rate
0.893 Mpps
MAC address table*
2000 entries
Jumbo frames support
Yes
Packet buffer memory
0.002048 MB
Design
Rack mounting*
No
Stackable*
No
Form factor
Desktop
Product colour
Black
LED indicators
Power, PoE, Link
Power
Power source*
DC
Power supply included*
Yes
Power
AC input voltage
220 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
66.53 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
65 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
226.19 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging content
User guide
Yes
Certificates
Certification
CE, ROHS, KC, NTRA
Additional Information
| EAN/UPC | 1210002601153 |
|---|---|
| MPN | LS106P |
| BRAND | TPLINK |
