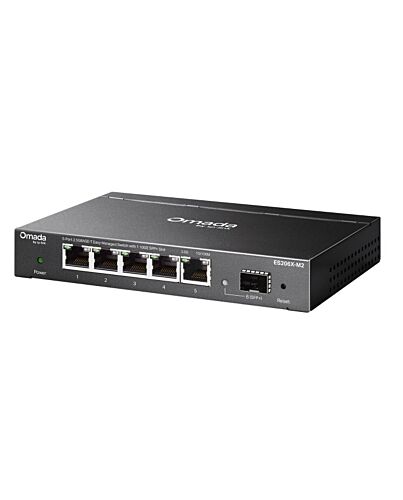

TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mountin
£54.34
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port lation, Cable Test△, QoS△ for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
5
Basic switching RJ-45 Ethernet ports type*
2.5G Ethernet (100/1000/2500)
SFP+ ule slots quantity
1
Network
Networking standards*
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
10G support*
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN
Data transmission
Switching capacity*
45 Gbit/s
Forwarding rate
33.48 Mpps
MAC address table*
16000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10
Packet buffer memory
0.64 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Design
Form factor
Desktop/Wall-Mounting
Product colour
Black
LED indicators
Yes
Performance
Flash memory
64 MB
upgradeable
Yes
Mean time between failures (MTBF)
1223587 h
Power
Power source*
AC
AC input voltage
100 - 240 V
Power consumption (max)
5.63 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
19.21 BTU/h
Weight & dimensions
Width
158 mm
Depth
100.7 mm
Height
25.4 mm
Weight
520 g
Certificates
Certification
CE, FCC, RoHS
Additional Information
| EAN/UPC | 1210002600736 |
|---|---|
| MPN | ES206X-M2 |
| BRAND | TPLINK |
