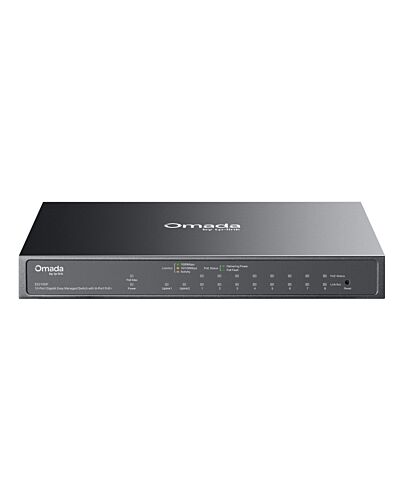

TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (
£84.08
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- 8× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 63W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port lation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
10
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
Network
Networking standards*
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support*
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs
4000
Optical fiber
Transmission distance (max)
0.25 km
Data transmission
Switching capacity*
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
0.5 MB
Security
DHCP features
DHCP client
Security
IGMP snooping
Yes
Loop protection
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting*
Yes
Form factor
DIN rail
Product colour
Black
LED indicators
Yes
Power
Power source*
DC
DC input voltage
53 V
Input current
1.31 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
63 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Cables included
Power
Quick start guide
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 1210002609739 |
|---|---|
| MPN | ES210GP |
| BRAND | TPLINK |
