TP-Link Omada PoE+ Extender Network repeater Black 10, 100, 1000 Mbit/s
£22.88
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does

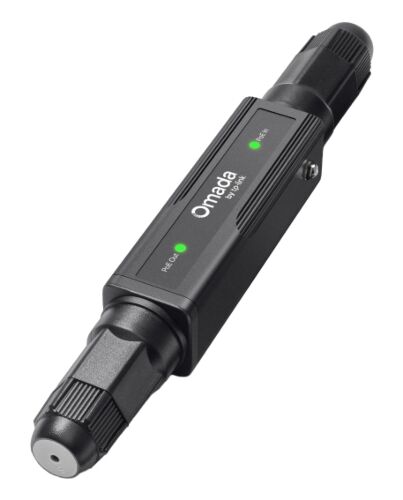

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.
The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.
Key Features
- 2× 10/100/1000 Mbps RJ45 ports
- Compliance with 802.3af/at devices
- Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection up to 500 m (250 m+250 m)* f the PoE power sourcing equipment under 10Mbps e
- Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Plug-and-Play, requires no configure
Specifications
Performance
Type*
Network repeater
Maximum transfer distance*
250 m
Data transfer rate
1000 Mbit/s
Cable types supported
Cat3, Cat5, Cat5e
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
International Protection (IP) code
IP68
Plug and Play
Yes
Network
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
DC-in jack
No
Design
Product colour*
Black
LED indicators
ACT, Link
Quantity per pack
1 pc(s)
Power
Power over Ethernet (PoE)
Yes
Maximum output power
30 W
Operational conditions
Operating temperature (T-T)
-40 - 65 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 90%
Storage relative humidity (H-H)
15 - 90%
Weight & dimensions
Width
221.7 mm
Depth
31 mm
Height
31.5 mm
Packaging content
Quick start guide
Yes
Certificates
Compliance certificates
Federal Communications Commission (FCC), CE, BSMI, KC
Additional Information
| EAN/UPC | 1210002606486 |
|---|---|
| MPN | POE20E-OUTDOOR |
| BRAND | TPLINK |
