Networking

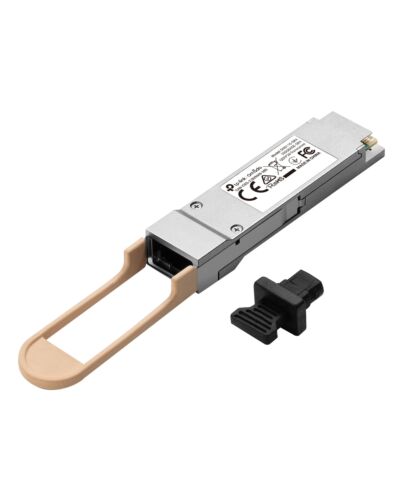

TP-Link Omada SM9110-SR4 network transceiver ule Fiber optic 100000 Mbit/s QSFP28 850 nm
£79.06
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-e QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
Key Features
- 100GBASE-SR4 multi-e QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
100000 Mbit/s
Interface type*
QSFP28
Single-e fiber (SMF) supported
No
Multi-e fiber (MMF) supported
Yes
Fiber optic connector
MPO-12, MTP
Fiber cable diameters supported (core/cladding)
50/125 µm
SFP transceiver standard
SR4
Maximum transfer distance
150 m
Wavelength
850 nm
Tx power (min)
-8.4 dBmW
Tx power (max)
2.4 dBmW
Ethernet interface type
40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards
IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology
40GBASE, 100GBASE
Digital Diagnostics Monitoring (DDM)
Yes
Features
Product colour
Metallic
Form factor
QSFP28
Plug and Play
Yes
Hot-swap
Yes
Power
Input voltage
3.3 V
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Operational conditions
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Weight & dimensions
Width
124 mm
Depth
18.4 mm
Height
11.7 mm
Packaging content
Quantity per pack
1 pc(s)
Packaging data
User guide
Yes
Logistics data
Country of origin
China
Additional Information
| EAN/UPC | 8885020625509 |
|---|---|
| MPN | SM9110-SR4 |
| BRAND | TPLINK |
