Components

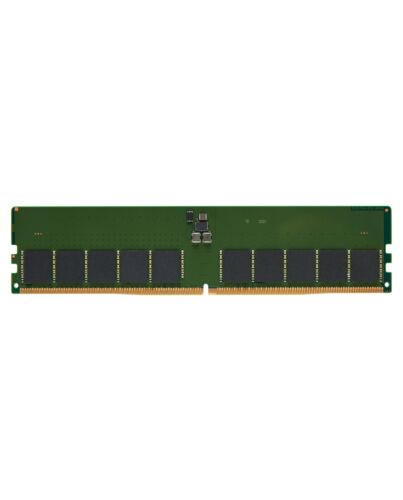

Kingston Technology 32GB DDR5 5600MT/s ECC Unbuffered DIMM CL46 2Rx8 1.1V 288-pin 16Gbit Micron H
£1,035.64
Kingston Technology 32GB DDR5 5600MT/s ECC Unbuffered DIMM CL46 2Rx8 1.1V 288-pin 16Gbit Micron H, 32 GB, 1 x 32 GB, DDR5, 288-pin DIMM, Green
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Kingston's KSM56E46BD8-32MH is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory ule, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
Features
On-Die ECC
Yes
CAS latency
46
Internal memory*
32 GB
Memory layout (ules x size)*
1 x 32 GB
Internal memory type*
DDR5
Memory data transfer rate*
5600 MT/s
Component for*
Server
Memory form factor*
288-pin DIMM
ECC*
Yes
Buffered memory type
Unregistered (unbuffered)
Memory ranking
2
Memory voltage
1.1 V
Row cycle time
48 ns
Features
Refresh row cycle time
184 ns
Row active time
32 ns
Row Precharge Time (TRP)
16
Programming power voltage (VPP)
1.8 V
Product colour
Green
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Compliance certificates
RoHS
Other features
Doesn't contain
Halogen
Additional Information
| EAN/UPC | 0740617361285 |
|---|---|
| MPN | KSM56E46BD832MH |
| BRAND | KINGSTON |
