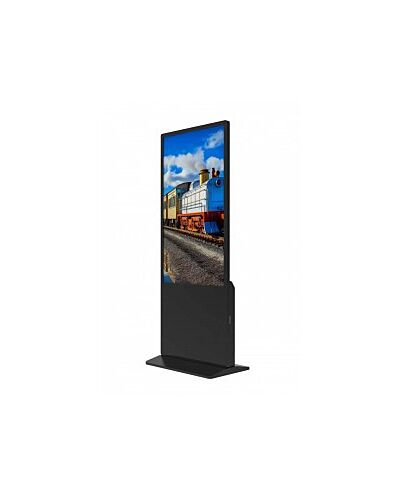

Dahua Technology LDV55-HAI400L-M Signage Display Kiosk design 139.7 cm (55") LCD 500 cd/m² 4K Ultra
£1,047.10
Dahua Technology LDV55-HAI400L-M, Kiosk design, 139.7 cm (55"), LCD, 2160 x 3840 pixels, 24/7
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- Designed with an industrial-grade panel. It works up to 24 hours a day
- Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution
- Plays and releases programs in multiple es
- With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes
- Designed with B/S architecture, the device manages programs by time and location, and generates operation reports
- The device offers unified platform management, and can be remotely controlled by the platform
- Provides a built-in AC power socket
- The reserved size for the third-party media box or mini PC is 200×200×100mm
Specifications
Display
Panel type
IPS
LED backlight
Yes
LED backlighting type
Edge-LED
Display diagonal*
139.7 cm (55")
Display technology*
LCD
Display resolution*
2160 x 3840 pixels
Display brightness*
500 cd/m²
HD type*
4K Ultra HD
Native aspect ratio
9:16
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Display diagonal (metric)
140 cm
Haze rate
1%
Ports & interfaces
HDMI ports quantity*
1
HDMI version
2.1
USB port*
Yes
USB ports quantity
2
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type
USB Type-A
Ethernet LAN (RJ-45) ports
1
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
10 W
Design
Product design*
Kiosk design
Orientation
Vertical
Product colour*
Black
Screen shape
Flat
Performance
Purpose*
Commercial
Operating hours (hours/days)
24/7
Power
Power consumption (typical)*
120 W
Power consumption (standby)*
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
120 kWh
AC input voltage
100–240
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Built-in processor*
Yes
Processor architecture
ARM Cortex-A55
Processor frequency
1.92 GHz
Processor cores
4
Internal memory
4 GB
Internal storage capacity
32 GB
Operating system installed
Android 11
Video formats supported
MP4, AVI, MOV, MKV, WMV
Weight & dimensions
Width (with stand)
741 mm
Depth (with stand)
460 mm
Height (with stand)
1900 mm
Weight (with stand)
50.3 kg
Packaging data
Package width
234 mm
Package depth
920 mm
Package height
2004 mm
Package weight
57.4 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 85%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Certificates
Certification
CE EMC, CE LVD, CE ERP
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Features
Base material
Metal
Additional Information
| EAN/UPC | 6937552422087 |
|---|---|
| MPN | DHI-LDV55-HAI400L-M |
| BRAND | DAHUA |
