Components

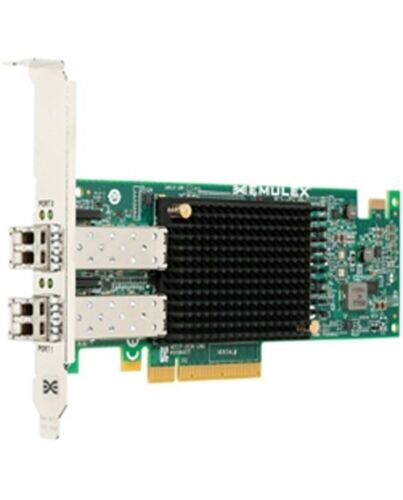

DELL 403-BBMF interface cards/adapter Internal Fiber
£1,993.97
DELL 403-BBMF, PCIe, Fiber, PCIe 3.0, Green, Server, CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China...
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Emulex LPe31002-M6-D Host Bus Adapter f Dell ™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with up to 2x better IOPS performance per watt, which makes Dell 16GB Fibre Channel (16GFC) host bus adapters the clear choice for the toughest virtualized, cloud and mission critical deployments.
- Doubling the maximum FC link rate 16GFC and enhanced virtualization capabilities help support IT "green" initiatives
- Frame-level multiplexing\increases link efficiency and maximizes HBA performance
- Accelerates network access to SSDs with NVMe over Fiber Channel ready feature- supports the upcoming NVMe over FC T11 standard
- Doubling the maximum FC link rate 16GFC and enhanced virtualization capabilities help support IT "green" initiatives
- Frame-level multiplexing\increases link efficiency and maximizes HBA performance
- Accelerates network access to SSDs with NVMe over Fiber Channel ready feature- supports the upcoming NVMe over FC T11 standard
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
Fiber
Expansion card standard
PCIe 3.0
Design
Internal*
Yes
Product colour
Green
Purpose
Server
Certification
CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Technical details
Compliance certificates
RoHS
Packaging data
Quantity
1
Logistics data
Harmonized System (HS) code
84733020
Other features
Data transfer rate
14.025 Mbit/s
Ports quantity
2
Data link protocols
16Gb Fibre Channel
Connectivity technology
Wired
Compatible operating systems
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux
Compatibility
- PowerEdge R630
- PowerEdge R730
- PowerEdge T630
- PowerEdge R730XD
- PowerEdge R530
- PowerEdge R930
- PowerEdge R640
- PowerEdge R740
- PowerEdge R940
- PowerEdge R740XD
- PowerEdge R440
- PowerEdge T640
- PowerEdge R540
- PowerEdge R7415
- PowerEdge R7425
- PowerEdge R840
- PowerEdge R940xa
- PowerVault ME4012
- PowerVault ME4024
- PowerVault ME4084
- PowerEdge R7515
- PowerEdge R7525
Additional Information
| EAN/UPC | 706947011351 |
|---|---|
| MPN | LPE31002-M6 |
| BRAND | Broadcom |
Disclaimer
Actual configuration might differ f illustration
