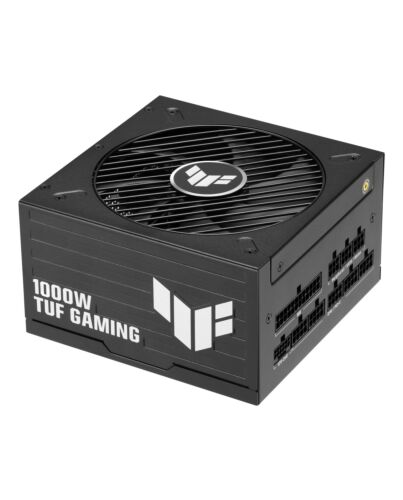

ASUS TUF-GAMING-1000P power supply unit 1000 W 20+4 pin ATX ATX Black
£148.87
ASUS TUF-GAMING-1000P, 1000 W, 100 - 240 V, Active, 125 W, 1000 W, 125 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Built For The Long Haul
The ASUS TUF Gaming 1000W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
The ASUS TUF Gaming 1000W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Specifications
Power
Total power*
1000 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
6
SATA power cable length
150,400 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
150,400 mm
PCI Express power connectors (6+2 pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
67.5 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
75 cm
Ports & interfaces
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Platinum
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
On/off switch
Yes
Certificates
Compliance certificates
RoHS
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.51 kg
Packaging data
Package width
304 mm
Package depth
188 mm
Package height
127 mm
Package weight
3.29 kg
Package type
Box
Additional Information
| EAN/UPC | 4711636489768 |
|---|---|
| MPN | 90YE0101-B0NA00 |
| BRAND | ASUS ACCESSORIES |
