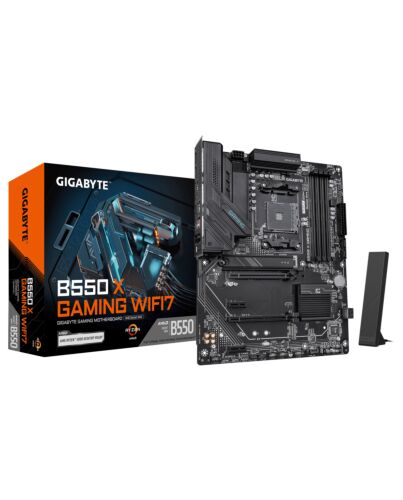

GIGABYTE B550 X GAMING WIFI7 Motherboard
£125.60
GIGABYTE B550 X GAMING WIFI7 Motherboard, AMD, Socket AM4, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
- Hybrid Digital twin 8+2 phases VRM solution
- Dual Channel DDR4: 4*DIMMs with EXPO™ Memory ule Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch: PCIe slot with Quick Release & Screwless Design
- M.2 EZ-Latch Plus/ Click: M.2 slots and heatsinks with screwless design
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 7
- Extended Connectivity: HDMI, Displayport
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)
3200 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
32 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, PCI Express 4.0, PCI Express 3.0, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
HDCP version
2.3
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
12V power connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
tek RTL8125
Network
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller el
tek RTL8922AE
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD B550
Audio output channels*
7.1 channels
Product colour
Dark brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
3.0
BIOS
BIOS type*
AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.42 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
Other features
Weight
2.01 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331883454 |
|---|---|
| MPN | B550 X GAMING WIFI7 |
| BRAND | Gigabyte |
