Components

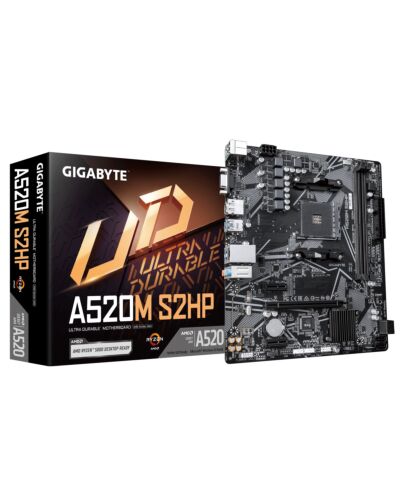

GIGABYTE A520M S2HP Motherboard
£52.91
GIGABYTE A520M S2HP Motherboard, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 64 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- Fast Networks: GbE LAN
- HDMI, Display Port, D-sub Ports for Multiple Display
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4866 MHz
Supported memory clock speed (max)
3200 MHz
Maximum internal memory*
64 GB
Storage controllers
Supported storage drive interfaces*
M.2, PCI Express 3.0, SATA
RAID support
Yes
RAID levels
0, 1, 10
Graphics
On-board graphics card
No
HDCP
Yes
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
AMD A520
Audio output channels*
7.1 channels
Product colour
Black
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
772 g
Weight & dimensions
Width
244 mm
Depth
205 mm
Height
35 mm
Packaging content
Batteries included
Yes
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331882457 |
|---|---|
| MPN | A520M S2HP |
| BRAND | Gigabyte |
