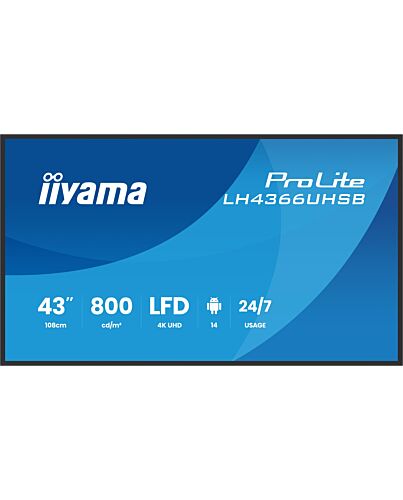

iiyama LH4366UHSB-B1AG Signage Display Digital signage flat panel 109.2 cm (43") LCD Wi-Fi 800 cd/m²
£654.72
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite LH4366UHSB-B1AG is a 43" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .
Specifications
Display
Panel type
VA
Display diagonal*
109.2 cm (43")
Display technology*
LCD
Display resolution*
3840 x 2160 pixels
Display brightness*
800 cd/m²
HD type*
4K Ultra HD
Touchscreen*
No
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.245 x 0.245 mm
Active display area (W x H)
941.2 x 529.4 mm
Display diagonal (metric)
108 cm
Horizontal scan range
57 - 62 kHz
Native refresh rate
60 Hz
Haze rate
25%
Ports & interfaces
HDMI ports quantity*
2
HDMI version
2.0
DVI port*
No
USB port*
Yes
USB ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
15 W
USB Type-C DisplayPort Alternate e
Yes
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Digital signage flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
300 x 300 mm
Bezel width (bottom)
1.28 cm
Bezel width (side)
1.28 cm
Bezel width (top)
1.28 cm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
1.4/2.0
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
102 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor manufacturer
MediaTek
Processor family
ARM Cortex
Processor el
MT9679
Processor architecture
ARM Cortex-A73
Internal memory
4 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
973 mm
Display depth
70 mm
Display height
560 mm
Display weight
8.7 kg
Width
973 mm
Depth
70 mm
Height
560 mm
Weight
8.7 kg
Packaging data
Package width
1075 mm
Package depth
652 mm
Package height
144 mm
Package weight
11.5 kg
Packaging content
Remote control included
Yes
Cables included
AC, HDMI, RS-232
Mounting kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Technical details
Playback media
✓
User controls
network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom e, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Sustainability certificates
ErP
Pallet net height
108.5 cm
Pallet net length
195.6 cm
Pallet net width
116.2 cm
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide
Yes
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570128204 |
|---|---|
| MPN | LH4366UHSB-B1AG |
| BRAND | Iiyama |
