ASUS ROG CROSSHAIR 2006 AMD X870E Socket AM5 ATX
£621.19
ASUS ROG CROSSHAIR 2006, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

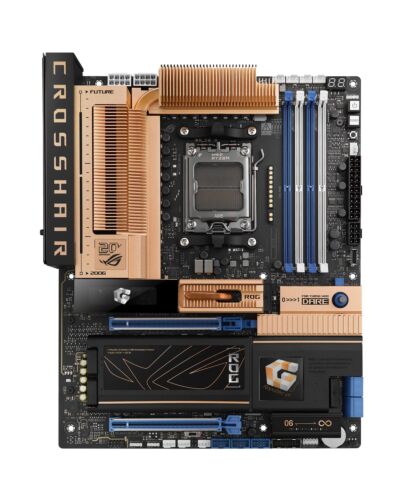

ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with ern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monoche format (up to 100KB).
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with ern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monoche format (up to 100KB).
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
2
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
12V power connector
Yes
Number of temperature sensor headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
3
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
3
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller el
MediaTek MT7927
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD X870E
Audio chip
tek ALC4082
Audio output channels*
7.1 channels
Product colour
Black, Gold
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Power source type
ATX
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
5
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
5th M.2 largest key size
2230
5th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
Packaging data
Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
5.57 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
50 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Other features
Weight
2.51 kg
Additional Information
| EAN/UPC | 4711636595704 |
|---|---|
| MPN | 90MB1PP0-M0EAY0 |
| BRAND | ASUS |
