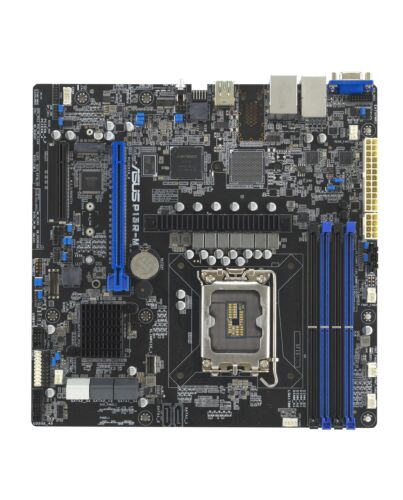

ASUS P13R-M Intel C262 LGA 1700 micro ATX
£411.12
ASUS P13R-M, Intel, LGA 1700, Intel® Pentium®, Intel Xeon E, DDR5-SDRAM, 128 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data center.
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for ern data center.
Key Features
- Powered by eight-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
- Dual Intel I210-AT gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for resiliency
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Pentium®, Intel Xeon E
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
Supported memory clock speeds
3600,4000,4400 MHz
Maximum internal memory*
128 GB
Supported memory ule capacities
8GB, 16GB, 32GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
8
Number of storage drives supported
9
RAID support
Yes
Graphics
Graphics card family
ASPEED
Graphics card
AST2600
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
3
Number of SATA III connectors*
8
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Serial port headers
1
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
3
Ethernet LAN (RJ-45) ports*
2
VGA (D-Sub) ports quantity*
1
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
LAN controller
Intel® I210-AT
Wi-Fi*
No
Top Wi-Fi standard
Not available
Features
Motherboard chipset*
Intel C262
Component for*
Server
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Expansion slots
PCI Express x8 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 50 °C
Storage relative humidity (H-H)
20 - 90%
Packaging data
Package width
341 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.3 kg
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Weight
760 g
Additional Information
| EAN/UPC | 4711636234337 |
|---|---|
| MPN | 90SB0C70-M0UAY1 |
| BRAND | ASUS |
