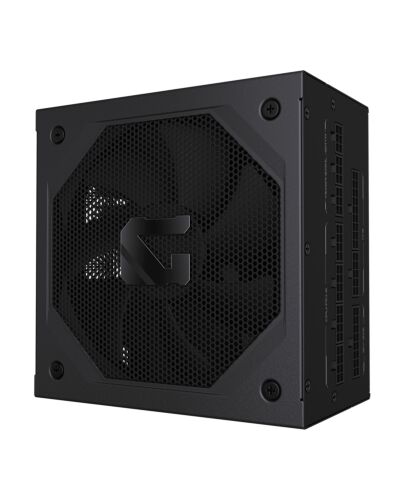

GIGABYTE GAMING 1000GM PG5 Power Supply Unit - PCIe 5.1, 80 PLUS Gold, Fully ular Design, 135mm Fan,
£133.22
GIGABYTE GAMING 1000GM PG5 Power Supply Unit - PCIe 5.1, 80 PLUS Gold, Fully ular Design, 135mm Fan, ATX 3.1 compatible, UK Plug, 1000 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 120 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- 80 PLUS Gold
- Cybenetics ETA Platinum & LAMBDA A-
- T-Guard Active GPU Protection
- 135mm Smart Fluid Dynamic Bearing (FDB) Fan
- HybridCool Smart Fan Control
- 100% Japanese capacitors
- Powerful single +12V rail
- OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP protection
- 10-year warranty (Subject to region)
Specifications
Power
Total power*
1000 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
12 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
1000 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
83.3 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
17 ms
Efficiency
90%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush protection (SIP), No load operation
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
8
Number of SATA power cables
2
Peripheral (Molex) power connectors (4-pin)*
4
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Ports & interfaces
PCI Express connector
Yes
Number of EPS connectors
2
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
2.6 kg
Packaging data
Package width
302 mm
Package depth
184 mm
Package height
129 mm
Package weight
3.24 kg
Package type
Box
Logistics data
Warranty period
10 year(s)
Additional Information
| EAN/UPC | 4719331557447 |
|---|---|
| MPN | GP-GME1000GM PG5 |
| BRAND | Gigabyte |
