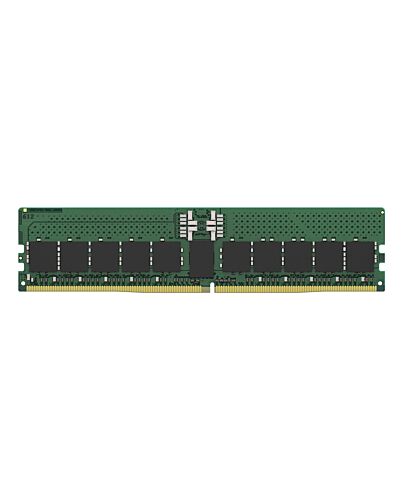

Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H
£997.42
Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H, 32 GB, 1 x 32 GB, DDR5, 288-pin DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory ule, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
Features
On-Die ECC
Yes
CAS latency
46
Internal memory*
32 GB
Memory layout (ules x size)*
1 x 32 GB
Internal memory type*
DDR5
Memory data transfer rate*
5600 MT/s
Component for*
Server
Memory form factor*
288-pin DIMM
ECC*
Yes
Buffered memory type
Registered (buffered)
Memory ranking
2
Memory voltage
1.1 V
ule configuration
4096M x 80
Row cycle time
48 ns
Features
Refresh row cycle time
295 ns
Row active time
32 ns
Row Precharge Time (TRP)
16
SPD profile
Yes
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Compliance certificates
RoHS
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Additional Information
| EAN/UPC | 740617360325 |
|---|---|
| MPN | KSM56R46BD8-32MH |
| BRAND | KINGSTON |
