Data Input Devices

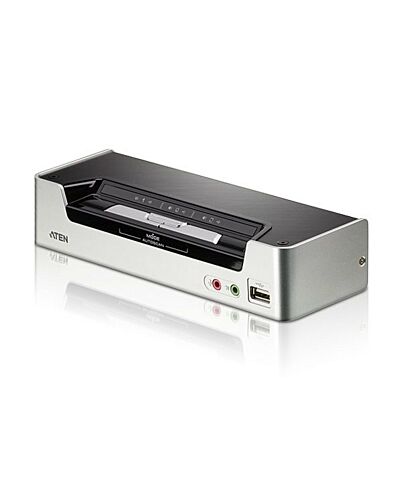

ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
£196.98
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals f a single console.
1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key Features
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- PC selection via pushbutton and hotkeys
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support - Windows, Linux,and Mac
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
1,5,99 s
Design
Product colour*
Black, Grey
Housing material
Metal, Plastic
LED indicators
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
5.35 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
206.3 mm
Depth
72.4 mm
Height
44 mm
Weight
1.04 kg
Packaging data
Package width
95 mm
Package depth
265 mm
Package height
220 mm
Package weight
1.37 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
5.2 kg
Harmonized System (HS) code
85176200
Master (outer) case width
232 mm
Master (outer) case length
500 mm
Master (outer) case height
283 mm
Master (outer) case gross weight
7.3 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423775701 |
|---|---|
| MPN | CS1792 |
| BRAND | ATEN |
