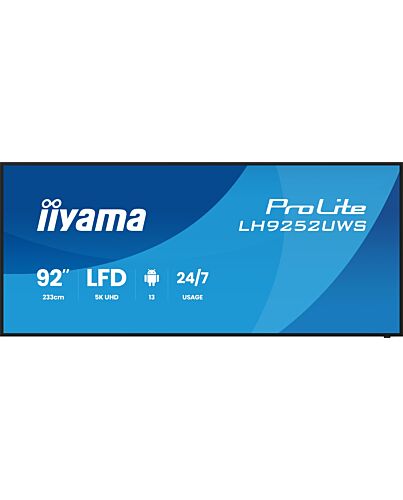

iiyama LH9252UWS-B1AG Signage Display Kiosk design 2.34 m (92") LCD Wi-Fi 500 cd/m² UltraWide 5K HD
£2,752.20
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.
Specifications
Display
Panel type
VA
Display diagonal*
2.34 m (92")
Display technology*
LCD
Display resolution*
5120 x 2160 pixels
Display brightness*
500 cd/m²
HD type*
UltraWide 5K HD
Touchscreen*
No
Native aspect ratio
21:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.13945 x 0.41835 mm
Active display area (W x H)
2141.952 x 903.636 mm
Display diagonal (metric)
233 cm
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Haze rate
25%
Ports & interfaces
HDMI ports quantity*
1
HDMI version
2.0
HDMI input ports quantity
1
Consumer Electronics Control (CEC)
Yes
DVI port*
No
DisplayPorts quantity*
1
USB port*
Yes
USB ports quantity
3
Ethernet LAN (RJ-45) ports
2
RS-232C
Yes
OPS ule slot
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Kiosk design
Placement supported*
Indoor/outdoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
800 x 600 mm
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Anti-glare screen
Yes
Performance
Purpose*
Commercial
On Screen Display (OSD)
Yes
Number of OSD languages
18
On Screen Display (OSD) languages
CAT, Traditional Chinese, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Japanese, Lithuanian, LAT, Dutch, Polish, Russian
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
1.4
Power
Power consumption (typical)*
201 W
Power
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Built-in processor*
Yes
Processor el
RK3588
Processor architecture
ARM Cortex-A76+Cortex-A55
Processor cores
8
Internal memory
8 GB
On-board graphics card el
Mali-G640 MP4
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
13
Weight & dimensions
Display width
2182 mm
Display depth
85.2 mm
Display height
943.8 mm
Display weight
44 kg
Width
2182 mm
Depth
85.2 mm
Height
943.8 mm
Weight
44 kg
Packaging data
Package width
2360 mm
Package depth
225 mm
Package height
1072 mm
Package weight
63 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, DisplayPort, RS-232
Wi-Fi ule included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
50 pc(s)
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Technical details
OPS slot
1
Audio in (mini jack)
Yes
User controls
Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, ule Number, Android Version, Kernel Version, Build Number, Version, Serial Number)
Sustainability certificates
ErP
Pallet net height
114 cm
Pallet net length
12 cm
Pallet net width
2.38 m
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide
Yes
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570128051 |
|---|---|
| MPN | LH9252UWS-B1AG |
| BRAND | Iiyama |
