Networking

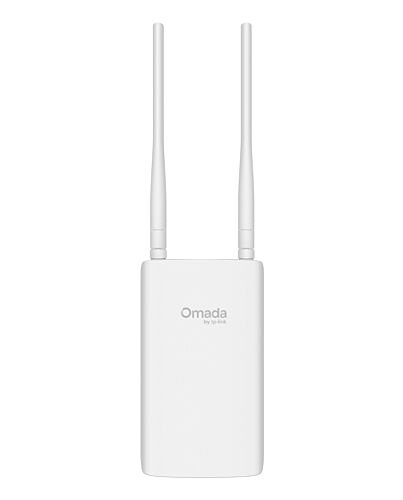

TP-Link Omada EAP603-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)
£108.80
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included)
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1800 Mbit/s
Maximum data transfer rate (2.4 GHz)
573 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at
Bluetooth
Yes
Maximum outdoor range
300 m
Security
Security algorithms*
EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering
Yes
IP address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Guest access
Yes
Remote ation Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Management features
Web-based management
Yes
Cloud-managed
Yes
Backup function
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Power
DC voltage range
42.5 - 57 V
Input current
0.36 A
Power consumption (max)
4.8 W
Design
Placement*
Pole, Wall
Product colour*
White
International Protection (IP) code
IP65, IP66
Antenna
Antenna type*
Internal & external
Antenna direction type
Omni-directional
Antennas quantity
4
Antenna gain level (max)
5 dBi
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
230 mm
Depth
207.5 mm
Height
69.7 mm
Packaging content
PoE adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Additional Information
| EAN/UPC | 1210002605748 |
|---|---|
| MPN | EAP603-OUTDOOR |
| BRAND | TPLINK |
