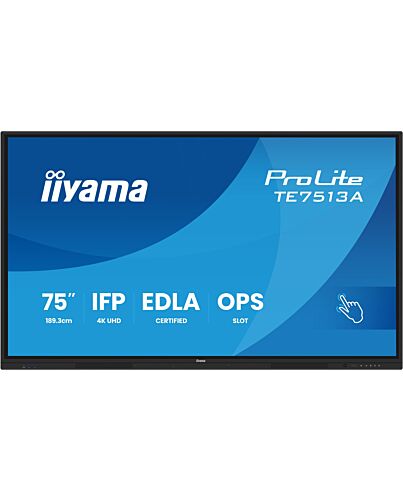

iiyama TE7513A-B3AG Signage Display Interactive flat panel 190.5 cm (75") LCD Wi-Fi 500 cd/m² 4K Ult
£1,640.76
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TE7513A-B3AG is a 4K UHD Google EDLA interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
Specifications
Display
Panel type
IPS
Display diagonal*
190.5 cm (75")
Display technology*
LCD
Display resolution*
3840 x 2160 pixels
Display brightness*
500 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
PureTouch-IR
Number of simultaneous touchpoints
40
Multi-touch
Yes
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.4296 x 0.4296 mm
Active display area (W x H)
1650 x 928 mm
Display diagonal (metric)
189.3 cm
Colour saturation
72%
Horizontal scan range
30 - 135 kHz
Haze rate
25%
Surface hardness
7H
Touch response time
5 ms
Glass thickness
3.2 mm
Ports & interfaces
HDMI ports quantity*
3
HDMI version
2.0
HDMI input ports quantity
1
HDMI output ports quantity
1
Consumer Electronics Control (CEC)
Yes
DVI port*
No
DisplayPorts quantity*
1
DisplayPort version
1.2
USB port*
Yes
USB ports quantity
6
USB version
3.2 Gen 1 (3.1 Gen 1)
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
Ethernet LAN (RJ-45) ports
2
RS-232 interface
Yes
RS-232C
Yes
OPS ule slot
Yes
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
60 W
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Orientation
Horizontal
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
800 x 400 mm
Bezel width (bottom)
4.67 cm
Bezel width (side)
1.67 cm
Bezel width (top)
1.41 cm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Commercial
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Performance
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
188 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system*
Yes
Computer system type
System on Chip (SoC)
Built-in processor*
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor el
RK3576
Processor architecture
ARM Cortex-A53+Cortex-A72
Processor cores
8
Internal memory
6 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1710 mm
Display depth
87 mm
Display height
1016 mm
Display weight
51.8 kg
Width
1710 mm
Depth
87 mm
Height
1016 mm
Weight
51.8 kg
Packaging data
Package width
1860 mm
Package depth
185 mm
Package height
1125 mm
Package weight
63 kg
Packaging content
Remote control included
Yes
Stylus pen
Yes
Number of stylus pens
4
Cables included
AC, USB, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
6 pc(s)
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Technical details
Audio in (mini jack)
Yes
OPS slot
1
Playback media
✓
User controls
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound e, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display e colour temp), settings (wireless & networks, share, device, personal, system)
Sustainability certificates
ErP
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide
Yes
Bluetooth version
5.0
Brightness
500 cd/m²
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570128129 |
|---|---|
| MPN | TE7513A-B3AG |
| BRAND | Iiyama |
