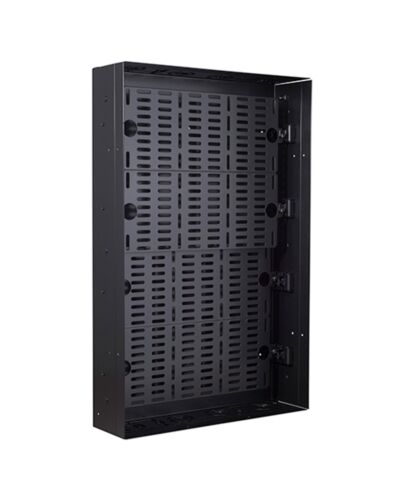

Chief Proximity® PAC527L Extra-Large In-Wall Storage Box with Lever LockTM
£245.86
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The new PAC527L now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box.
Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Optionally also include one of the following power protection options:
- Two outlet Power Filter Kit PACPC1
- Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
- Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
- Two outlet IP controlled Select Series Compact PDU with RackLink™ f Middle Atlantic Products
Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Optionally also include one of the following power protection options:
- Two outlet Power Filter Kit PACPC1
- Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
- Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
- Two outlet IP controlled Select Series Compact PDU with RackLink™ f Middle Atlantic Products
Key Features
- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accomate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1-1/4", 1", and ½" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
- Allows for AV devices to be mounted in advance before terminating cables on site
- PACL2 plate can be snapped in half to create two smaller sections
- Printable backplane template for planning purposes
- Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
- For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
- Optional black PAC527F-KIT or white PAC527FW-KIT paintable flanges and black PAC527CVR-KIT or white PAC527CVRW-KIT covers to blend in any environment
- Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
Specifications
Features
Type*
Wall mounted rack
Maximum weight capacity*
4.5 kg
Product colour
Black
Material
Metal
Certification
UL
Weight & dimensions
Width
559 mm
Weight & dimensions
Depth
99 mm
Height
362 mm
Weight
18.1 kg
Logistics data
Harmonized System (HS) code
85381000
Additional Information
| EAN/UPC | 0841872174471 |
|---|---|
| MPN | PAC527L |
| BRAND | Chief |
