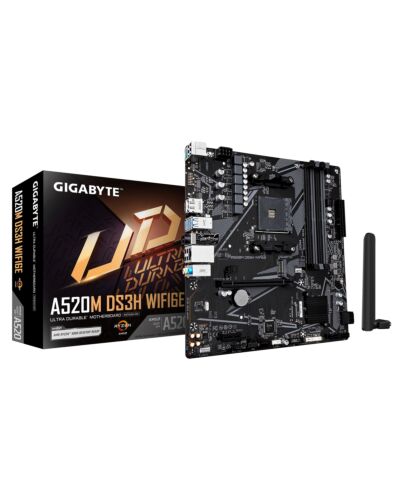

GIGABYTE A520M DS3H WIFI6E Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4
£69.04
GIGABYTE A520M DS3H WIFI6E Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI 6E, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, Socket AM4, DDR4-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge technology.
Key Features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 x4 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- Rear DisplayPort and HDMI for Multi-display Support
- Anti-Sulfur Resistors Design
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz
Supported memory clock speed (max)
4733 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
32 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
HDCP version
2.3
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
LAN controller
tek RTL8111H
Wi-Fi*
Yes
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller el
MediaTek MT7902
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD A520
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Dark brown
PC health monitoring
Temperature, Voltage, Fan
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
3.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
972 g
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Drivers included
Yes
Bundled software
Norton® Internet Security (OEM version)
Other features
Weight
880 g
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331880743 |
|---|---|
| MPN | A520M DS3H WIFI6E |
| BRAND | Gigabyte |
