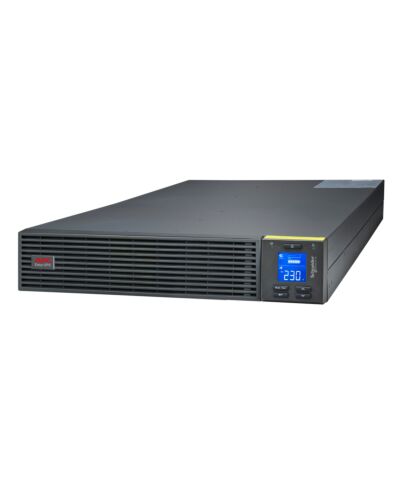

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 2U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent
£2,529.73
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 6kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions." "The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately." "The Easy UPS has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
Key Features
- 6kVA/6kW double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO e
- Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Reasons To Buy
Text and mimic diagrams that display es of operation, system parameters and alarms.
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.Operating e that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Full color text and mimic diagrams that easily display es of operation, systems parameters and alarms.EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Registering s s the features of the data center management software.Automatically starts up the connected equipment upon the return of utility power.
Periodic battery self-test ensures early detection of a battery that needs to be replaced.Minimizes installation costs by enabling the use of smaller generators and cabling.
Prevents unauthorized access to the UPS.Serial connectivity
Provides management of the UPS via a serial port.Provides management of the UPS via a USB port (not available on all els).
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
6 kVA
Output power*
6000 W
Waveform*
Sine
Input frequency*
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Crest factor
3:1
ECO e
Yes
Emergency Power Off (EPO)
Yes
Audible alarm(s)
Yes
Audible alarm es
Alarm when on battery, Low battery alarm, Overload alarm
Auto-restart
Yes
Maintenance-free
Yes
Ports & interfaces
AC outlet types
Hard Wire 3-wire (1P + N + E)
Power plug
Terminal
USB port
Yes
USB 2.0 ports quantity
1
USB port type
USB Type-B
Serial interface
Yes
Serial ports quantity
1
Emergency Power Off (EPO) connector
Yes
SmartSlot
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Automatic battery test
Yes
Design
Form factor*
Rackmount
Rack capacity
2U
Product colour*
Black
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 14763.6 m
Technical details
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Certification
CE; EAC
Packaging content
Cables included
USB cable
Manual
Yes
Weight & dimensions
Width
438 mm
Depth
615 mm
Height
86.5 mm
Weight
14 kg
Packaging data
Software CD
Yes
Package width
600 mm
Package depth
760 mm
Package height
240 mm
Package weight
18 kg
Logistics data
Customs product code (TARIC)
8504409590
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
3557.503130030406
Country of origin
China
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Output connection type
hard wire 3-wire (1P + N + E) for 1 zone(s)
Output voltage
230 V
Mounting
front; horizontal
Additional Information
| EAN/UPC | 731304343844 |
|---|---|
| MPN | SRVPM6KRIL |
| BRAND | APC |
