Networking

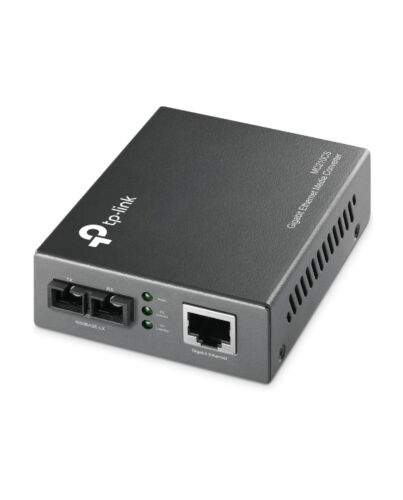

TP-Link Omada MC210CS network media converter 1000 Mbit/s 1310 nm Single-e Black
£25.15
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-e fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-e fiber up to 9.3 miles (15km).
Key Features
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 9.3 miles (15km)
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Copper ethernet cabling technology
1000BASE-LX, 1000BASE-T
Auto MDI/MDI-X
Yes
Cable types supported
Cat5, Cat5e
Performance
Maximum transfer distance*
15000 m
Wavelength*
1310 nm
Fiber e structure
Single-e
Features
Internal*
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Ports & interfaces
Fiber optic connector*
SC
Power
Power consumption (max)
1.8 W
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002611060 |
|---|---|
| MPN | MC210CS |
| BRAND | TPLINK |
