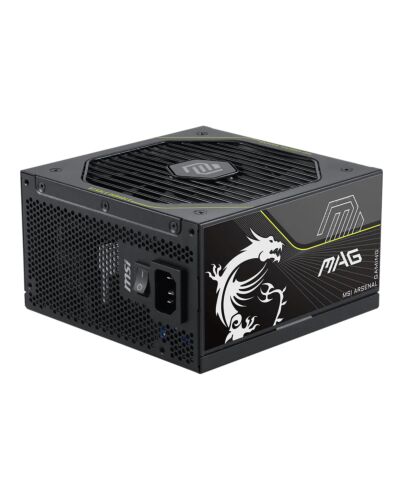

MSI MAG A1000PLS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black
£142.86
MSI MAG A1000PLS PCIE5, 1000 W, 100 - 240 V, 50/60 Hz, Active, 100 W, 999.6 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Key Features
- Premium protection, GPU Safeguard and Fan Safeguard
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Platinum
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Specifications
Power
Total power*
1000 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Combined power (+3.3V)
100 W
Combined power (+12V)
999.6 W
Combined power (+5V)
100 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
83.3 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
24-pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
6
SATA power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)*
1
Peripheral (Molex) power cable length
450,500 mm
EPS power connector (8-pin)
No
Ports & interfaces
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Platinum
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
FDB
Design
Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Illumination
No
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Additional Information
| EAN/UPC | 4711377397940 |
|---|---|
| MPN | 4711377397940 |
| BRAND | MSI |
