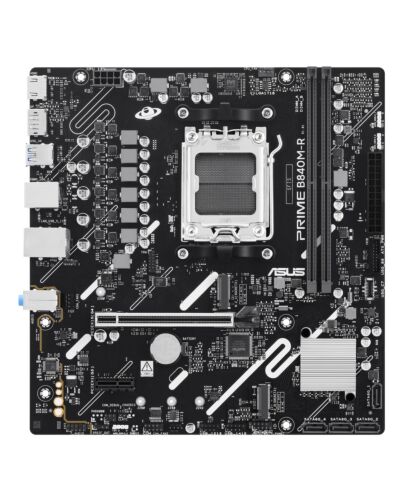

ASUS PRIME B840M-R AMD B840 Socket AM5 micro ATX
£89.44
ASUS PRIME B840M-R, AMD, Socket AM5, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, DDR5-SDRAM, 128 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime B840M-R
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-R motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-R motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
7600 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
Rear panel I/O ports
PS/2 ports quantity
1
HDMI ports quantity*
1
DisplayPorts quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
USB connector type
USB Type-A
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
AMD B840
Audio output channels*
7.1 channels
Product colour
Multicolour
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 11, Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
260 mm
Package depth
270 mm
Package height
51.5 mm
Package weight
924 g
Weight & dimensions
Width
236 mm
Depth
229 mm
Height
36.5 mm
Other features
Weight
563 g
Additional Information
| EAN/UPC | 4711636560702 |
|---|---|
| MPN | 90MB1PT0-M0EAY0 |
| BRAND | ASUS |
