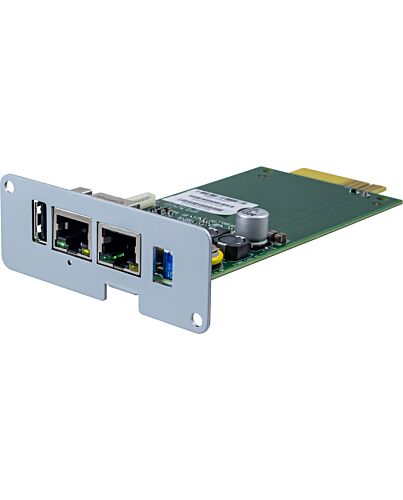

Legrand CS102 Internal Ethernet 1000 Mbit/s
£180.40
Legrand CS102, Internal, Wired, Ethernet, 1000 Mbit/s, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The network interfaces for managing UPS do not require any external software. They include a proprietary system capable of -time control of the operation of the UPS and managing numerous events (power failure, overload, , problem, etc.) and as a result executing a series of actions.
Available in external and internal version (in this case it is inserted in a dedicated slot in the UPS).
Supply voltage 9 - 30 VDC (power supply included in external versions).
The professional and industrial versions have an additional RS 232/RS 485 communication ports.
Multi-language User Interface
The web pages of the CS102 support the following languages: German, English, French, Italian, Spanish.
Graphical Interfaces
Several options are available for monitoring and configuring the CS102: internet browsers, every type of SNMP or BUS network management system, and UNMS/UNMS II software. The statistical analysis of the UPS’s values is graphically shown through the web browser. updatable.
Data Logging
Measurement values, alarms, and battery tests are written with timestamps into the non-volatile storage of the CS102 adapter. The time synchronization function through NTP ensures that all the data are written with precise time values.
Scheduler
The integrated scheduler, available via the web interface, allows you to program the UPS on/off or run battery tests. This secures that the UPS runs regularly battery tests and informs the user about problems via email, log file, etc.
Events Notification
The CS102 can be configured to relay either all or only specific alarms via email or SNMP TRAP messages. The email client can use both public email servers and local mail servers.
Multi-Server Shutdown
The "CS102 Shutdown Client" software, installed on each computer powered by the UPS, allows the execution of a safe shutdown in case of necessity. Available for Windows (Vista and higher) and Linux. Different methods are available for shutdown and restart the systems:
CS102 Shutdown Client: the operating systems are ppted to shutdown.
Wake on LAN: the computers in a local network are ppted to start-up.
Available in external and internal version (in this case it is inserted in a dedicated slot in the UPS).
Supply voltage 9 - 30 VDC (power supply included in external versions).
The professional and industrial versions have an additional RS 232/RS 485 communication ports.
Multi-language User Interface
The web pages of the CS102 support the following languages: German, English, French, Italian, Spanish.
Graphical Interfaces
Several options are available for monitoring and configuring the CS102: internet browsers, every type of SNMP or BUS network management system, and UNMS/UNMS II software. The statistical analysis of the UPS’s values is graphically shown through the web browser. updatable.
Data Logging
Measurement values, alarms, and battery tests are written with timestamps into the non-volatile storage of the CS102 adapter. The time synchronization function through NTP ensures that all the data are written with precise time values.
Scheduler
The integrated scheduler, available via the web interface, allows you to program the UPS on/off or run battery tests. This secures that the UPS runs regularly battery tests and informs the user about problems via email, log file, etc.
Events Notification
The CS102 can be configured to relay either all or only specific alarms via email or SNMP TRAP messages. The email client can use both public email servers and local mail servers.
Multi-Server Shutdown
The "CS102 Shutdown Client" software, installed on each computer powered by the UPS, allows the execution of a safe shutdown in case of necessity. Available for Windows (Vista and higher) and Linux. Different methods are available for shutdown and restart the systems:
CS102 Shutdown Client: the operating systems are ppted to shutdown.
Wake on LAN: the computers in a local network are ppted to start-up.
Key Features
- Event log with date and time
- Memorising the trend of the main operating data, complete with date and time
- E-mail transmission
- Accomplishment of scheduled actions
- Shutdown on remote computers
- Transmission of SNMP trap messages
- Turning the UPS off and on
- Transmitting “Wake On LAN (WOL)” signals
- Compatible with SNMP protocol
- Data and configuration display via the Internet browser (Internet Explorer, Mozilla Firefox, Opera, etc…)
Specifications
Ports & interfaces
Connectivity technology*
Wired
Interface*
Ethernet
Ethernet LAN (RJ-45) ports
2
USB ports quantity
2
Network
Maximum data transfer rate*
1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wake-on-LAN ready
Yes
Supported network protocols
IPv4, IPv6, DHCP, DNS, HTTP, HTTPS, SSH, NTP, SMTP, SNMP, BUS TCP, Wake on LAN, UPnP, RADIUS
Design
Component for*
Uninterruptible power supply (UPS)
Product colour
Grey
Internal*
Yes
LED indicators
Error
Power
Output voltage
5.5 - 40 V
Power consumption (typical)
3 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
20 - 95%
Weight & dimensions
Width
68 mm
Depth
133 mm
Height
43 mm
Weight
69 g
Packaging content
Mounting brackets included
Yes
Quick installation guide
Yes
Other features
Processor frequency
180 MHz
Processor architecture
ARM9
Flash memory
8 MB
Additional Information
| EAN/UPC | 3414972226646 |
|---|---|
| MPN | 311058 |
