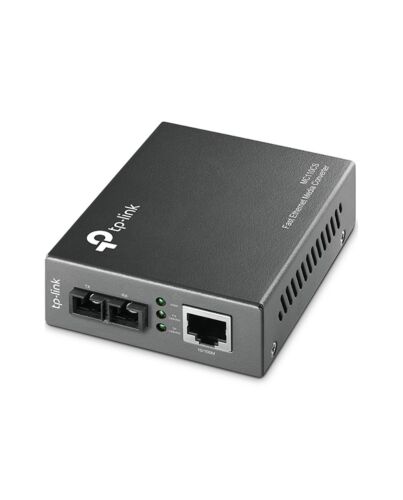

TP-Link Omada MC110CS network media converter 100 Mbit/s 1310 nm Single-e Black
£20.95
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-e fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex e. The MC110CS will transmit at extended fiber optic distances utilizing single-e fiber up to 12.5 miles (20km).
Key Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer e
- Extends fiber distance up to 12.5 miles (20km)
Specifications
Network
Maximum data transfer rate*
100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates
10,100 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-T
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Cable types supported
Cat3, Cat4, Cat5
Performance
Maximum transfer distance*
12500 m
Wavelength*
1310 nm
Fiber e structure
Single-e
Features
Internal*
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Ports & interfaces
Fiber ports quantity
1
Fiber optic connector*
SC
Power
Power consumption (max)
2.4 W
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 1210002619325 |
|---|---|
| MPN | MC110CSTP |
| BRAND | TPLINK |
