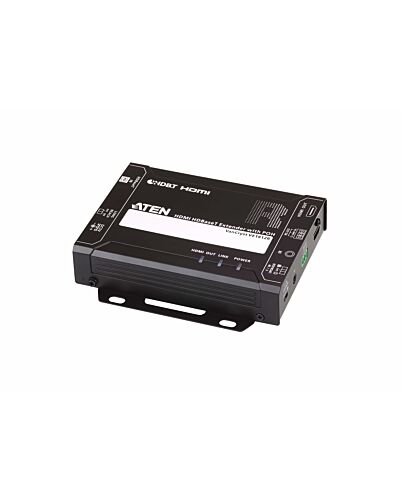

ATEN HDMI HDBaseT Receiver with POH
£298.86
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE1812R features Power over HDBaseT (POH) which sends power f Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device f the receiver unit (VE1812R) while also accessing the HDMI display device f the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
1x VE1812R HDMI HDBaseT Receiver with POH
1x 0AD9-1F05-26EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions
1x VE1812R HDMI HDBaseT Receiver with POH
1x 0AD9-1F05-26EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions
Key Features
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Supports HDBaseT Long Reach e – Up to a maximum range of 150 meters @ 1080p
- POH (Power over HDBaseT) – supplies power f Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Specifications
Features
Type*
AV receiver
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
150 m
LED indicators
Yes
Supported video es
1080p, 2160p
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Bandwidth
10.2 Gbit/s
Bandwidth
340 MHz
HDCP
Yes
Material
Metal
3D
Yes
Consumer Electronics Control (CEC) support
Yes
Impedance
100 Ω
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
HDBaseT port
Yes
Number of HDMI outputs
1
RS-232 output ports
1
Video out
1
3.5 mm (1/8-inch) out
Yes
Remote (IR) output
1
DC-in jack
Yes
Power
Operating voltage (receiver)
5 V
Power consumption (receiver) (max)
6.4 W
Power
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
650 g
Receiver dimensions (WxDxH)
123 x 140.4 x 30 mm
Receiver weight
450 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
750 g
Packaging content
AC adapter included
Yes
Quick start guide
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
4.48 kg
Master (outer) case net weight
3.25 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264645785 |
|---|---|
| MPN | VE1812R |
