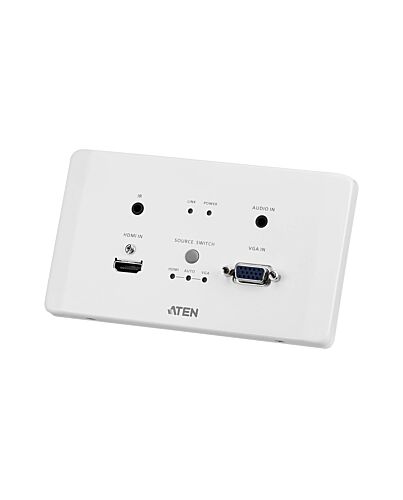

ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
£433.51
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV transmitter, 150 m, Wired, White
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH
1x JCNT-3301-103G 3 Pin RS-232 Terminal Block
1x JCNT-3301-102G 2 Pin Power Terminal Block
1x Mounting Kit
1x 0AD8-1F05-26M1 Power Adapter
1x User Instructions
Key Features
- Extends HDMI or VGA signals over a single Cat 5e/6/6a cable
- HDMI: 4K distance up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- VGA: 1600 x 1200 and 1920 x 1200 up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach e – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply f the HDBaseT output port on the connected device
- Supports Auto Switch – automatically switches to a newly plugged-in source
Specifications
Features
Type*
AV transmitter
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
150 m
LED indicators
Link, Power, Status
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Bandwidth
10.2 Gbit/s
Material
Metal
Control type
Buttons, Slider
Impedance
100 Ω
Product colour
White
Ports & interfaces
Connectivity technology*
Wired
VGA (D-Sub) input ports
1
HDMI in
1
Audio input
1 x Mini Stereo
Remote (IR) input
1
Power
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
151 mm
Depth
86 mm
Height
51.7 mm
Weight
420 g
Packaging data
Quantity per pack
1 pc(s)
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
665 g
Packaging content
AC adapter included
Yes
Quick start guide
Yes
Mounting kit
Yes
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
336 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
3.91 kg
Master (outer) case net weight
2.1 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264649660 |
|---|---|
| MPN | VE2812AEUT |
