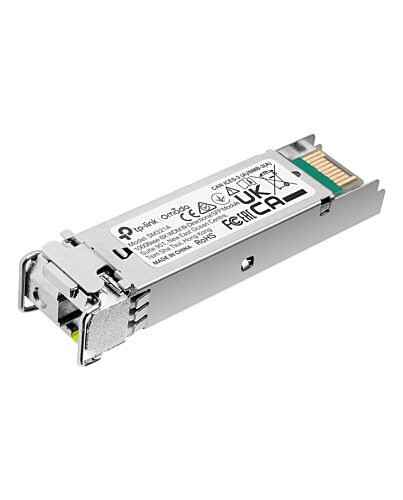

TP-Link Omada SFP 1000BASE-Sm MiniGBIC BX10D
£24.19
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
Key Features
- WDM Bi-Directional SFP ule
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
1250 Mbit/s
Interface type*
SFP
Single-e fiber (SMF) supported
Yes
Fiber cable diameters supported (core/cladding)
9/125 µm
Maximum transfer distance
20000 m
Tx wavelength (max)
1550 nm
Rx wavelength (max)
1310 nm
Digital Diagnostics Monitoring (DDM)
Yes
Features
Product colour
Silver
Hot-swap
Yes
Power
Input voltage
3.3 V
Certificates
Certification
FCC, CE
Operational conditions
Minimum operating temperature
0 °C
Operational conditions
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
55.4 mm
Depth
14.6 mm
Height
12.9 mm
Packaging content
Quantity per pack
1 pc(s)
Packaging data
User guide
Yes
Package width
38 mm
Package depth
207 mm
Package height
38 mm
Package weight
110 g
Additional Information
| EAN/UPC | 1210002619264 |
|---|---|
| MPN | SM321A |
| BRAND | TP-LINK |
