Components

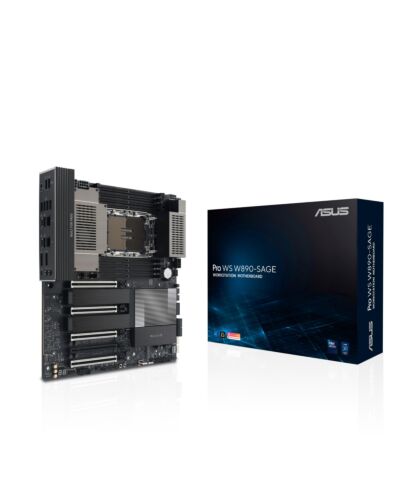

ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB
£859.04
ASUS PRO WS W890-SAGE, Intel, LGA 4710-2, Intel® Xeon®, LGA 4710-2, DDR5-SDRAM, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Key Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA4710-2 Socket Supports up to 86-Core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.
- Ultrafast Connectivity: Four PCIe® 5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and Memory Overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory ules (2DPC).
- Robust Power and Thermal Design: 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
- Ready for Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion card, plus ASUS Control Center Express software for -time monitoring and management
- Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 4710-2
Compatible processor series*
Intel® Xeon®
Supported processor sockets
LGA 4710-2
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
8
Memory slots type
DIMM
Memory channels
Quad-channel
ECC сompatibility
ECC
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III, SlimSAS
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 5, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
7680 x 4320 pixels
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
5
Number of COM connectors
1
12V power connector
Yes
Integrated SAS ports
2
Number of water pump connectors
1
Number of temperature sensor headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
2
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
6
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
2
DisplayPorts quantity
2
DisplayPort version
1.4
Headphone outputs
1
Rear panel I/O ports
Line-in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel W890
Audio chip
tek ALC1220P
Audio output channels*
7.1 channels
Product colour
Black
Component for*
Workstation
Motherboard form factor*
CEB
Motherboard chipset family*
Intel
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
4
Number of M.2 (M) slots
4
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes
BIOS flashback button
Yes
Packaging data
Package width
376 mm
Package depth
320 mm
Package height
100 mm
Package weight
4.12 kg
Weight & dimensions
Width
305 mm
Depth
280 mm
Height
50 mm
Packaging content
Cables included
SATA, DisplayPort
Screws included
Yes
Other features
Weight
2.75 kg
Number of M.2 (E) slots
1
Additional Information
| EAN/UPC | 4711636390453 |
|---|---|
| MPN | 90MB1MW0-M0EAY0 |
| BRAND | ASUS |
