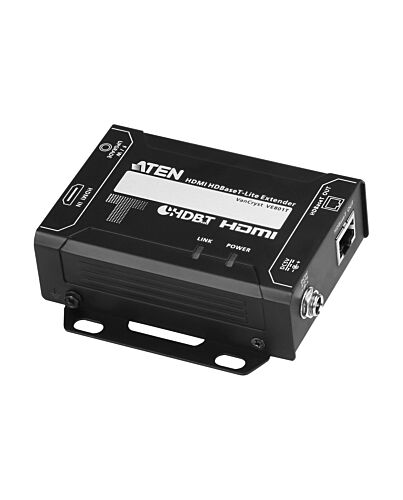

ATEN HDMI HDBaseT-Lite (Class B) Transmitter (70m)
£144.41
ATEN HDMI HDBaseT-Lite (Class B) Transmitter (70m), 3840 x 2160 pixels, AV transmitter, 70 m, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m f the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
* Compatible HDBaseT Receiver Units: VE801R
* Compatible HDBaseT Receiver Units: VE801R
Key Features
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Specifications
Features
Type*
AV transmitter
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
70 m
LED indicators
Yes
Supported video es
1080p
Bandwidth
340 MHz
HDCP
Yes
Material
Metal
Product colour
Black
Ports & interfaces
Ethernet LAN
Yes
RJ-45 output ports
1
HDMI in
1
DC-in jack
Yes
Power
Power consumption (typical)
1.85 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Dimensions (WxDxH)
87 x 103 x 30 mm
Weight
240 g
Packaging content
AC adapter included
Yes
Technical details
Compliance certificates
RoHS
Additional Information
| EAN/UPC | 4719264642784 |
|---|---|
| MPN | VE801T |
| BRAND | ATEN |
