ATEN VGA to HDMI Audio/Video converter
£69.71
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

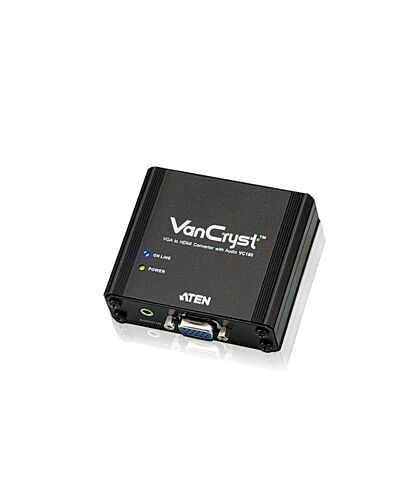

The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – f the VGA port or a power adapter. The VC180 gets its power supply f the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.
1x VC180 VGA to HDMI Converter with Audio
1x 0AD6-1605-09EG Power Adapter
1x User Instructions
1x VC180 VGA to HDMI Converter with Audio
1x 0AD6-1605-09EG Power Adapter
1x User Instructions
Key Features
- Converts VGA signals to HDMI output
- Supports analog stereo audio input
- Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Superior video quality – up to 1080p, WUXGA
Specifications
Features
Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Metal
Video
Maximum video resolution*
1920 x 1080 pixels
Video resolutions
1920 x 1080 pixels
Supported video es
1080p
Supported aspect ratios
16:9
Bandwidth
165 MHz
Ports & interfaces
Host interface*
VGA (D-Sub)
Output interface*
HDMI
DC-in jack
Yes
Power
Input voltage
5 V
Power consumption (typical)
2.62 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
79 mm
Depth
78.1 mm
Height
24.4 mm
Weight
220 g
Packaging data
Quick installation guide
Yes
Quantity
1
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
385 g
Logistics data
Master (outer) case net weight
4.4 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
8.37 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710423777606 |
|---|---|
| MPN | VC180 |
