StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable - T
£174.82
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB

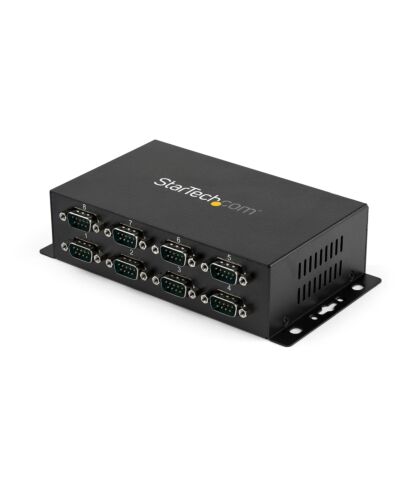

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features
- INDUSTRIAL STRENGTH: Built to withstand harsh environments, this 8 port USB to serial RS232 adapter has a rugged all-metal enclosure for added durability in industrial settings
- COM RETENTION CAPABILITIES: For added convenience, this FTDI USB to DB9 RS232 hub features COM retention so COM port assignments are maintained during reboots
- PLUG AND PLAY INSTALLATION: This DB9 serial converter is powered by an available USB port / cable so no external power adapter is required
- INSTALLATION OPTIONS: This USB serial adapter has integrated wall mount brackets and included DIN Rail clips for versatile mounting options
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 8 port FTDI USB to serial DB9 RS232 adapter is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Ports & interfaces
Host interface*
USB 2.0 Type-B
Hub interfaces*
Serial
Ports quantity*
8
RS-232 ports
8
Card reader integrated
No
DC-in jack
Yes
Features
Product colour
Black
Housing material
Steel
LED indicators
Activity
Power
Input voltage
5 V
Input current
0.25 A
Power plug type
Type M
USB powered
Yes
System requirements
Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supported
Windows XP Embedded
Weight & dimensions
Width
100 mm
Depth
180 mm
Height
43.2 mm
Weight
544 g
Packaging data
Package width
243 mm
Package depth
170 mm
Package height
62 mm
Packaging data
Package weight
862 g
Packaging content
Cables included
USB
Manual
Yes
DIN rail kit included
Yes
Drivers included
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Data bits
7, 8
Stop bits
1, 2
Parity bit
Even, Mark, No, Odd, Space
FIFO (First In, First Out)
4048 B
Baud rate
921.6 Kbit/s
Mean time between failures (MTBF)
146300 h
Sustainability
Sustainability compliance
Yes
Logistics data
Master (outer) case width
425 mm
Master (outer) case length
421 mm
Master (outer) case height
290 mm
Products per master (outer) case
16 pc(s)
Harmonized System (HS) code
84719000
Technical details
Compliance certificates
CE, RoHS
Other features
Chipset
FTDI - FT232RL
Additional Information
| EAN/UPC | 65030848978 |
|---|---|
| MPN | ICUSB2328I |
| BRAND | StarTech.com |
