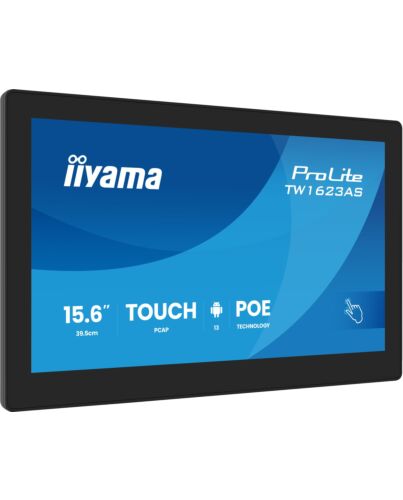

iiyama TW1623AS-B3P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Blac
£300.70
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 16, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, ern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Specifications
Display
Display diagonal*
39.6 cm (15.6")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LED
Panel type*
IPS
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
450 cd/m²
Display brightness
385 cd/m²
Response time*
30 ms
Response time measurement type
GTG (Gray to Gray)
Contrast ratio (typical)*
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Display number of colours*
16.7 million colours
Pixel pitch
0.1792 x 0.1792 mm
Viewable size, horizontal
34.4 cm
Viewable size, vertical
19.4 cm
Display diagonal (metric)
39.5 cm
Surface hardness
6H
Colour depth
8 bit
Performance
Operating hours (hours/days)
24/7
Operating system installed
Android
Operating system version
13
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)*
Yes
Design
Product colour*
Black
Front bezel colour
Black
Glass thickness
1.8 mm
Ports & interfaces
USB version
2.0
USB Touch port
Yes
HDMI ports quantity
1
Mini HDMI ports quantity
1
Audio input
Mini Jack
Microphone in
Yes
HDCP
Yes
Card reader integrated
Yes
Compatible memory cards
SD
Network
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth
Yes
Bluetooth version
5.2
Ethernet LAN
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
On Screen Display (OSD)
Yes
Power
Power consumption (typical)*
9 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Weight & dimensions
Width (with stand)
387 mm
Depth (with stand)
30.5 mm
Height (with stand)
244 mm
Weight (with stand)
1.5 kg
Packaging data
Package width
477 mm
Package depth
75 mm
Package height
298 mm
Package weight
2.45 kg
Packaging content
Power adapter included
Yes
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
AC adapter included
Yes
Placement supported
Indoor
Google applications
Google Che, Gmail, Google Calendar
Brightness
385 cd/m²
Packaging content
AC adapter, interchangeable plugs (EU/UK)
Built-in processor
Yes
Active display area (W x H)
344.2 x 193.6 mm
USB ports quantity
3
Weight
1.5 kg
User controls
Power switch, volume/ button +, volume/ button -
Touch method
finger, glove (latex), capacitive stylus
Height
244 mm
Width
387 mm
Control panel
Power switch, volume/ button +, volume/ button -
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Ethernet LAN (RJ-45) ports
1
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Thin Client
Processor family
ARM Rockchip
Processor el
RK3568
Processor architecture
ARM Cortex-A55
Processor frequency
2 GHz
Processor cores
4
Additional Information
| EAN/UPC | 4948570126934 |
|---|---|
| MPN | TW1623AS-B3P |
| BRAND | Iiyama |
