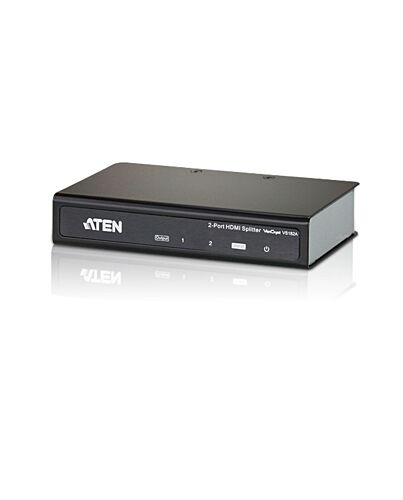

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
£51.92
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Key Features
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
2x HDMI
Video ports quantity*
3
DC-in jack
Yes
Features
Product colour
Black
Housing material
Metal
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
3D
Yes
Maximum operating distance
15 m
Maximum refresh rate
60 Hz
Bandwidth
340 MHz
HDCP version
1.4
HDCP
Yes
Plug and Play
Yes
LED indicators
Yes
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Power
AC input voltage
5 V
Power consumption (typical)
3.12 W
Weight & dimensions
Width
80 mm
Depth
125 mm
Height
25 mm
Weight & dimensions
Weight
504 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
642 g
Packaging content
Manual
Yes
Cables included
HDMI
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Master (outer) case net weight
10.1 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
13.3 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710423779921 |
|---|---|
| MPN | VS182A |
