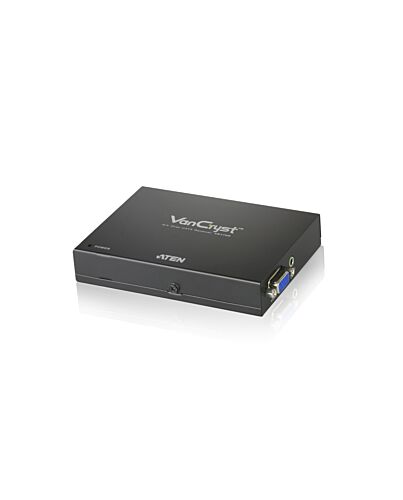

ATEN VGA Over Cat5e/6 Audio/Video Receiver (300m)
£118.37
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m f the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.
1x VE170R A/V Over Cat 5 Receiver
1x Power Adapter
1x Mounting Kit (1 pc)
1x User Instructions
1x VE170R A/V Over Cat 5 Receiver
1x Power Adapter
1x Mounting Kit (1 pc)
1x User Instructions
Key Features
- Long distance transmission up to 300 m
- Superior video quality - 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Specifications
Features
Type*
AV receiver
Maximum resolution*
1920 x 1200 pixels
Cable types supported
Cat5
Maximum transfer distance
300 m
Maximum refresh rate
60 Hz
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
15 kV
Supported graphics resolutions
1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Bandwidth
300 MHz
Material
Metal
Rack mounting
Yes
Impedance
75 Ω
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
VGA (D-Sub) output ports
1
Audio output
1
DC-in jack
Yes
Power
Operating voltage (receiver)
5.3 V
Power consumption (RX)
3.32 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Operational conditions
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
127.7 mm
Depth
90.4 mm
Height
22.6 mm
Weight
460 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
560 g
Packaging content
AC adapter included
Yes
Manual
Yes
Mounting kit
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
3.2 kg
Master (outer) case net weight
2.3 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423777286 |
|---|---|
| MPN | VE170R |
