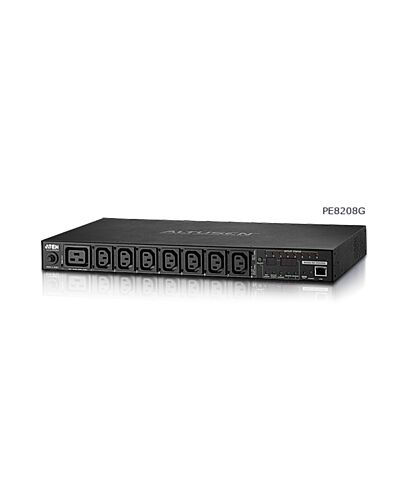

ATEN 1U 16A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software
£596.92
ATEN 1U 16A 8 Outlet Switched + Metered PDU + Free Eco PDU Manager Software, Metered, Switched, 1U, Horizontal, Black, 8 AC outlet(s), C13 coupler, C19 coupler
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
Key Features
- Remote power outlet control (On, Off, Power Cycle) by individual outlets
- -time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Specifications
Design
PDU types*
Metered, Switched
Rack capacity*
1U
Mounting
Horizontal
Product colour
Black
On/off switch
Yes
Ports & interfaces
AC outlets quantity*
8 AC outlet(s)
Power plug
C20 coupler
AC outlet types*
C13 coupler, C19 coupler
Features
LED indicators
Yes
Cable length
3 m
Power
Nominal input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Maximum current*
16 A
Nominal output voltage
100 - 240 V
Load capacity
3680 VA
Maximum power
100 W
Certificates
Certification
CE
TUV-CB
CE-LVD
GOST
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
220.4 mm
Depth
432.4 mm
Height
44 mm
Weight
3.38 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Packaging data
Package weight
4.04 kg
Package width
116 mm
Package depth
499 mm
Package height
324 mm
Logistics data
Master (outer) case net weight
10.1 kg
Master (outer) case width
388 mm
Master (outer) case length
519 mm
Master (outer) case height
348 mm
Master (outer) case gross weight
13.3 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423777712 |
|---|---|
| MPN | PE8208G |
