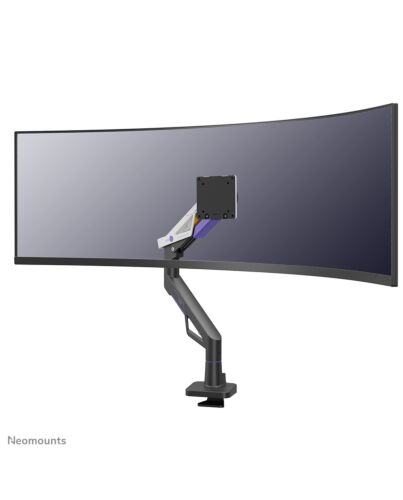

Neomounts DS70-256BL1 Gaming monitor arm 24-57" - gas spring - Topfix - 180°-stop

£149.28
Neomounts DS70-256BL1 Gaming monitor arm 24-57" - gas spring - Topfix - 180°-stop, Clamp/Gmet, 30 kg, 61 cm (24"), 144.8 cm (57"), 200 x 200 mm, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The Neomounts DS70-256BL1 ACE delivers exceptional performance and ergonomic comfort for gamers that want to take their setup to the highest level. Supporting screen sizes up to an impressive 57", including extra-wide els like the Samsung Odyssey G9, this arm is built to handle the most ambitious set-ups. With a heavy-duty weight capacity ranging f 2 to 30 kg (and up to 24 kg for curved monitors), it ensures maximum stability even during intense gaming sessions.

Thanks to its broad VESA compatibility f 75x75 to 200x200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.

For added practicality, the DS70-256BL1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and gmet offer fast and secure installation.

Whether you're engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256BL1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.

Specifications

Mounting

Maximum weight capacity*
30 kg
Minimum screen size*
61 cm (24")
Number of displays supported*
1
Maximum weight capacity (per display)*
30 kg
Maximum weight capacity (per curved/ultra-wide display)
24 kg
Maximum screen size*
144.8 cm (57")
Mounting
Clamp/Gmet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
200 x 200 mm
Panel mounting interface
100 x 200,100 x 100,200 x 100,200 x 200,75 x 75
Desk thickness (min)
1.2 cm
Desk thickness (max)
4.5 cm
Distance to the wall (min)
12.3 cm
Distance to the wall (max)
61.9 cm

Ergonomics

Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
310 - 570 mm
Adjustable depth
Yes
Depth adjustment range
90 - 586 mm
Width adjustment
99.2 cm
Tilt angle range
-45 - 70°
Swivelling
Yes
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
180°
Cable management
Yes

Design

Housing material
Aluminium
Product colour*
Black

Weight & dimensions

Width
130 mm
Depth
123 mm
Height
675 mm
Weight
4.7 kg

Packaging data

Package width
155 mm
Package depth
143 mm
Package height
423 mm
Package weight
5.2 kg

Other features

Minimum weight
2 kg
Width adjustment range
0 - 992 mm
Warranty period
5 year(s)

Logistics data

Master (outer) case width
356 mm
Master (outer) case length
290 mm
Master (outer) case height
510 mm
Master (outer) case gross weight
17.6 kg
Products per master (outer) case
4 pc(s)
Country of origin
China
Master (outer) case net weight
14.2 kg
Harmonized System (HS) code
7616991099
Products per pallet (EU)
100 pc(s)

Additional Information

More Information
EAN/UPC 8717371449919
MPN DS70-256BL1
BRAND NEOMOUNTS
