StarTech.com 4-Port USB-A PCIe Card, USB 3.2 10Gbps, PCI Express 3.0 Expansion Card, 4x Independent
£227.82
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

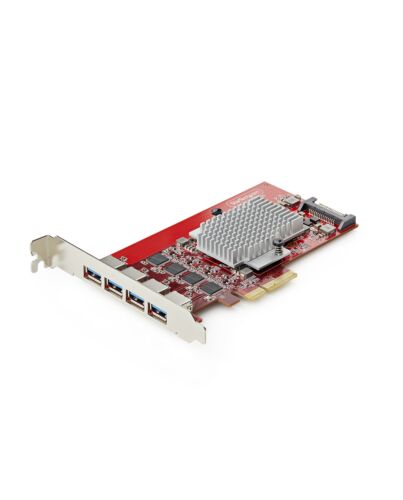

Add four USB Type-A ports with four independent 10Gbps channels to a computer via a PCI Express slot
Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, -time editing of high-resolution photos and videos on external storage, off-loading media f mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.
Compatibility
The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.
Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, -time editing of high-resolution photos and videos on external storage, off-loading media f mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.
Compatibility
The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.
Key Features
- High-Speed USB PCIe Card: Upgrade your desktop or server with four dedicated USB-A ports for up to 40Gbps of combined bandwidth, supporting data-heavy workflows, external drives, or high-speed USB network adapters
- Maximum Throughput with Dedicated Controllers: Each USB 3.2 Gen 2 port uses an independent controller to support up to 10Gbps per port, ensuring consistent performance even when multiple devices are connected simultaneously
- Designed for Broad Compatibility: This plug-and-play card works with Windows, macOS, and Linux systems, installs into a PCI Express 3.0 x4 (or larger) slot, and ships with a full-profile bracket
- Add Reliable Power with Auxiliary SATA: Use the built-in SATA power connector to supply up to 5V 2A (10W) per port, ensuring stable performance for bus-powered devices and peripherals when motherboard power is insufficient
- The IT Pro's Choice: Our USB expansion cards are built for consistent performance in professional environments and are tested for compatibility across operating systems and hardware; Backed by free lifetime 24/5 multilingual technical assistance
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard
PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
SATA power connector type
SATA 15-pin
Design
Internal*
Yes
Product colour
Red
Features
Chipset
ASMedia - ASM3142, ASMedia - ASM2812X
Data transfer rate (max)
10 Gbit/s
UASP support
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2019, Windows Server 2022
Technical details
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Width
56 mm
Depth
140 mm
Height
120 mm
Weight
94 g
Packaging data
User guide
Yes
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
160 g
Logistics data
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
310 mm
Master (outer) case height
500 mm
Additional Information
| EAN/UPC | 0065030912198 |
|---|---|
| MPN | P10Q4A-USB-CARD |
