Product Details
Description

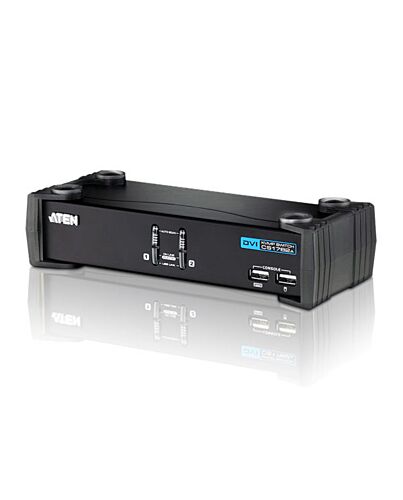

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
1 x CS1762A USB 2.0 DVI KVMP™ Switch
2 x 2L-7D02U USB DVI-D Single Link KVM Cables
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
1 x CS1762A USB 2.0 DVI KVMP™ Switch
2 x 2L-7D02U USB DVI-D Single Link KVM Cables
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Key Features
- Superior video quality – 1920 x 1200
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Multiplatform support – Windows, Linux, Mac, and Sun
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DVI-I
DVI-I ports quantity
2
USB 2.0 Type-B ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
1,99 s
DDC2B support
Yes
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Power
Input voltage
5.3 V
Power consumption (typical)
3.78 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
210 mm
Depth
88 mm
Height
55.5 mm
Weight
1.38 kg
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.63 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
6.9 kg
Harmonized System (HS) code
85176200
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
8.65 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423776821 |
|---|---|
| MPN | CS1762A |
