Data Input Devices

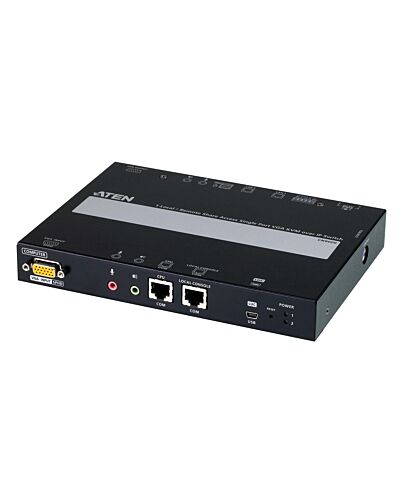

ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch
£831.35
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with ern-day workstations, but also legacy systems and older generation servers.
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions
Key Features
- High video resolution – up to 1920 x 1200 @ 60 Hz
- Provides an FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
- Supports 5-pin Relay/DI Terminal for environment monitoring and reboot control
- Supports Legacy PS/2 keyboard and mouse
Specifications
Ports & interfaces
Number of computers controlled*
1
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
VGA (D-Sub) ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB connector type
USB Type-A
Serial port type
RS-232
Serial ports quantity
1
Audio connections
Yes
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
HD type*
Full HD
Maximum resolution*
1920 x 1200 pixels
Design
Rack mounting*
No
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Power
Power source
AC
Input voltage
5 V
Power
Power consumption (typical)
7.46 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
200 mm
Depth
154.1 mm
Height
28.5 mm
Weight
1.26 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.68 kg
Logistics data
Master (outer) case net weight
6.3 kg
Harmonized System (HS) code
85176200
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
9.03 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710469340680 |
|---|---|
| MPN | CN9000 |
