Components

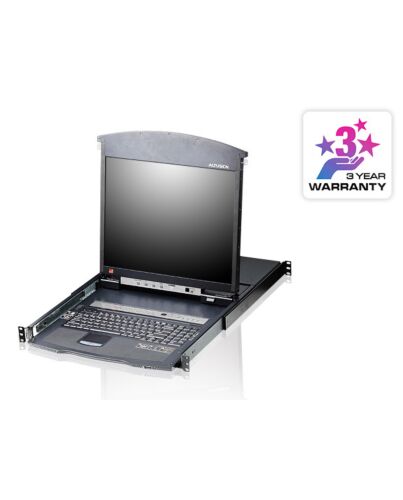

ATEN 16-Port 17" LCD CAT5e/6 KVM Switch (Dual Rail)
£1,641.68
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ALTUSEN KL1516A LCD KVM Switch features independently retractable, dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1516A KVM switches are control units that allow IT administrators to access and control multiple computers f the LCD console and an extra PS/2 or USB KVM console.
1x KL1516A 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1x LINS-04A2-J11G Upgrade Cable
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
1x KL1516A 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1x LINS-04A2-J11G Upgrade Cable
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions
Key Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- Superior Video Quality- Supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
Specifications
Display
Display diagonal*
43.2 cm (17")
Display
LCD
On Screen Display (OSD)
Yes
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Daisy chain
Yes
Number of computers controlled
16
LED indicators
Yes
Push button
Yes
Compliance certificates
RoHS
Rack capacity*
2U
Ports & interfaces
VGA (D-Sub) ports quantity
1
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Power consumption (typical)
24.5 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Width
480 mm
Height
44 mm
Depth
701.2 mm
Weight
15.4 kg
Packaging data
Package weight
18.7 kg
Package width
668 mm
Package depth
836 mm
Package height
135 mm
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
15.4 kg
Master (outer) case width
668 mm
Master (outer) case length
833 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
18.7 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642586 |
|---|---|
| MPN | KL1516AM |
| BRAND | ATEN |
