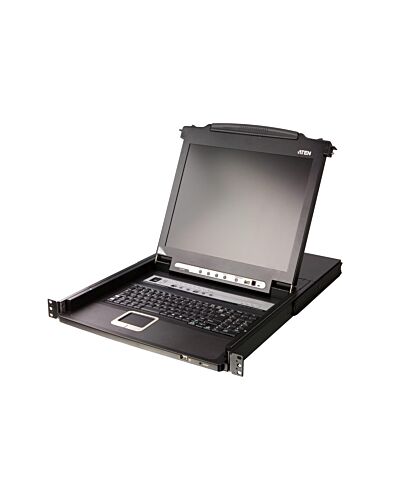

ATEN 8-Port 19" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
£1,538.48
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers f a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled f a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Key Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Daisy-chain up to 31 additional units - control up to 256 computers f a single console
- USB port allows each computer to access USB peripherals*
Specifications
Display
Display diagonal*
48.3 cm (19")
Display
LCD
On Screen Display (OSD)
Yes
Technical details
Product colour
Black
Hot-Plug support
Yes
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Daisy chain
Yes
Number of computers controlled
8
LED indicators
Yes
Push button
Yes
Compliance certificates
RoHS
Rack capacity*
1U
Ports & interfaces
VGA (D-Sub) ports quantity
8
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Power consumption (typical)
27.2 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
480 mm
Height
44 mm
Depth
689.2 mm
Weight
13.4 kg
Packaging data
Package weight
17 kg
Package width
668 mm
Package depth
833 mm
Package height
135 mm
Packaging content
Cables included
AC, KVM
Quick installation guide
Yes
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
13.6 kg
Master (outer) case width
668 mm
Master (outer) case length
833 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
17.1 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642487 |
|---|---|
| MPN | CL5708N |
| BRAND | ATEN |
