Industrial
iiyama TW2424AS-B3P Signage Display Interactive flat panel 60.5 cm (23.8") Wi-Fi 450 cd/m² Full HD B
£460.66
iiyama TW2424AS-B3P, Interactive flat panel, 60.5 cm (23.8"), 1920 x 1080 pixels, Wi-Fi, 24/7
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

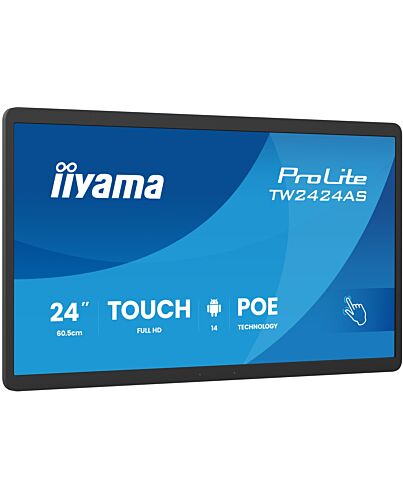

The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Reasons To Buy
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Specifications
Display
Panel type
IPS
Display diagonal*
60.5 cm (23.8")
Display resolution*
1920 x 1080 pixels
Display brightness*
450 cd/m²
HD type*
Full HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.275 x 0.275 mm
Active display area (W x H)
527 x 296.5 mm
Display diagonal (metric)
60.5 cm
Colour depth
8 bit
Surface hardness
6H
Ports & interfaces
DVI port*
No
USB port*
Yes
USB ports quantity
2
USB 2.0 Type-B ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
10 W
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
17.5 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Computer system
Computer system*
Yes
Built-in processor*
Yes
Computer system
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor el
Rockchip RK3576
Processor frequency
1.8 GHz
Internal memory
4 GB
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Display width
550 mm
Display depth
28 mm
Display height
336 mm
Display weight
4.24 kg
Width
550 mm
Depth
28 mm
Height
336 mm
Weight
4.24 kg
Width (with stand)
550 mm
Depth (with stand)
28 mm
Height (with stand)
336 mm
Weight (with stand)
4.24 kg
Packaging data
Package width
640 mm
Package depth
121 mm
Package height
410 mm
Package weight
6.2 kg
Packaging content
Cables included
AC
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Audio in (mini jack)
Yes
User controls
Power switch, volume/ button +, volume/ button -
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Audio input
✓
Bluetooth
Yes
Bluetooth version
5.3
Built-in microphone
Yes
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Brightness
450 cd/m²
Power supply type
External
Cable management
Yes
Additional Information
| EAN/UPC | 4948570127153 |
|---|---|
| MPN | TW2424AS-B3P |
| BRAND | Iiyama |
